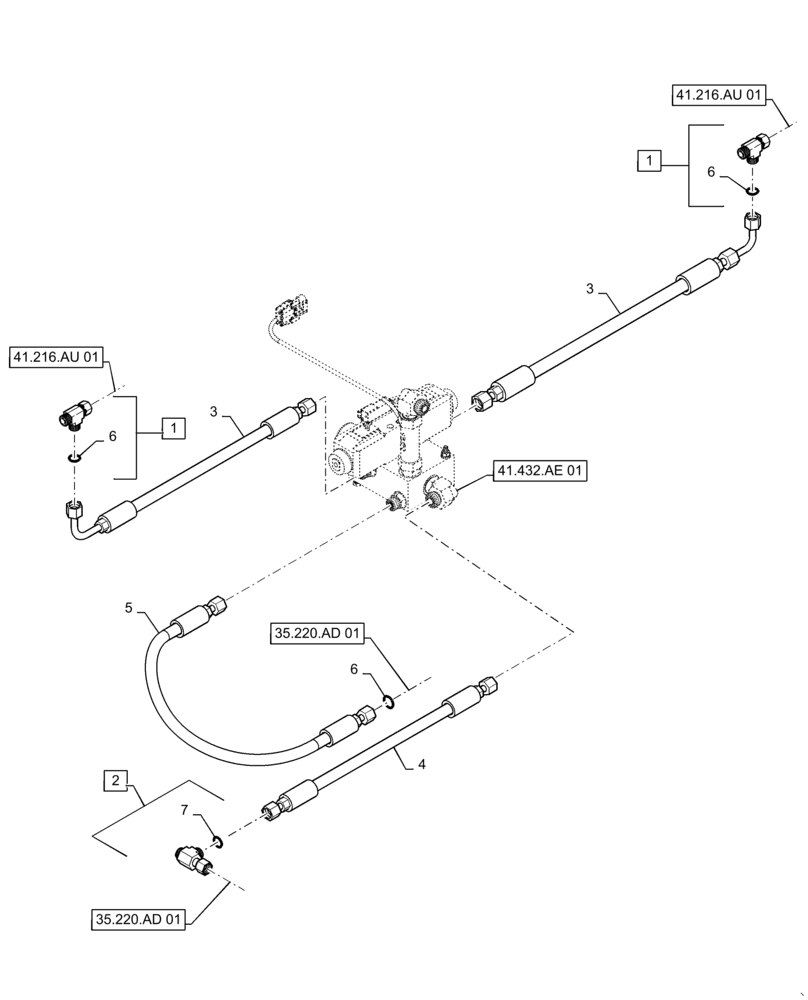

Запчасти Case IH PATRIOT 3340 (41.432.AC[01]) - AUTOGUIDANCE HYDRAULIC LINES (41) - STEERING

1

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel Run, Incl 6

2шт.

2

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Incl 7

1шт.

3

BN320874

HOSE ASSY.,9.53mm ID x 1625.6mm L, SAE 100R17

11/16 -16 Female ORFS Swivel x 11/16 -16 Female ORFS Swivel Medium Elbow x 3/8" ID x 64", Autoguidance Valve to Steering CylinderTee

2шт.

4

BN309746

HOSE

13/16 - 16 Female ORFS Swivel x 13/16 - 16 Female ORFS Swivel x 1/2" ID x 40" Long, Autoguidance Valve To Orbital Pump Tee

1шт.

5

BN314945

HOSE ASSY.

11/16" - 16 ORFS Swivel x 11/16" - 16 ORFS Swivel x 3/8" ID x 25" Long, Autoguidance Valve to Pressure Steel Line "D"

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.
