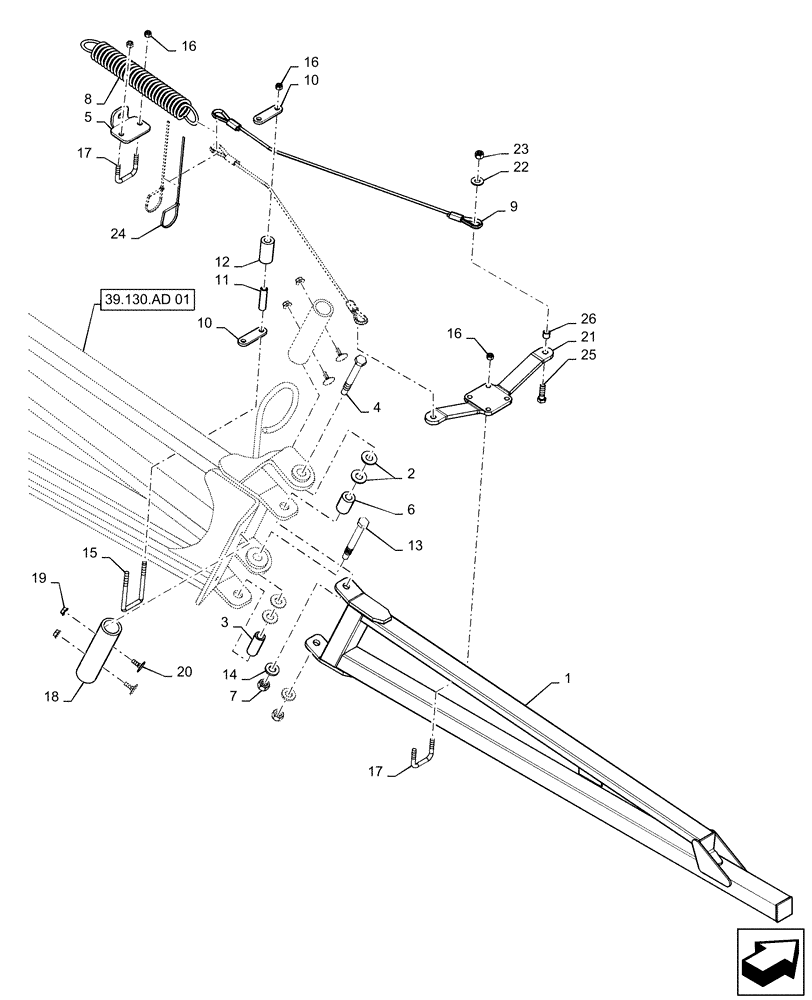

Запчасти Case IH PATRIOT 3340 (39.130.AB[09]) - BOOM BREAKAWAY, 90 BOOM (39) - FRAMES AND BALLASTING

1

BN325289

FRAME

Boom, Breakaway

1шт.

2

87272614

WASHER,17.5mm ID x 38.1mm OD x 3.18mm Thk

38mm OD x 17mm x 3.2mm, Nylon

6шт.

3

87272899

BUSHING,15.89mm ID x 25.21mm OD x 68mm L

25mm OD x 16mm ID x 68mm long

1шт.

4

84189224

BOLT

M16 x 110mm

1шт.

5

84217032

PLATE

Breakaway Spring

1шт.

6

87265981

ROLLER,31.75mm OD x 48mm L

1.25" OD x .64" ID x 1.88" Long, UHMW

1шт.

7

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

8

BN305410

SPRING

1.67" x 0.283"

1шт.

9

47587694

CABLE,729mm L

Breakaway, 28 - 3/4" Long

2шт.

10

BN308039

PLATE

Spacer

2шт.

11

47361072

GUIDE

Insert

2шт.

12

47361079

GUIDE

Cable

2шт.

13

84189219

BOLT

M16 x 120mm

1шт.

14

87310607

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17.5mm x 34mm x 5 mm, HDN, DOR

2шт.

15

BN305434

U-BOLT

3/8"

1шт.

16

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

17

BN68062

U-BOLT

3/8"

3шт.

18

87706358

HOSE,38.10 mm ID

2шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

4шт.

20

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

4шт.

21

47643934

LEVER

Breakaway

1шт.

22

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

2шт.

23

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

24

BN570007

STRAP

Black, 14 - 12"

2шт.

25

87022683

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

26

47636886

BUSHING

2шт.
