Запчасти Case IH PATRIOT 3340 (39.130.AB[08]) - RH OUTER BOOM, 90/100 BOOM (39) - FRAMES AND BALLASTING

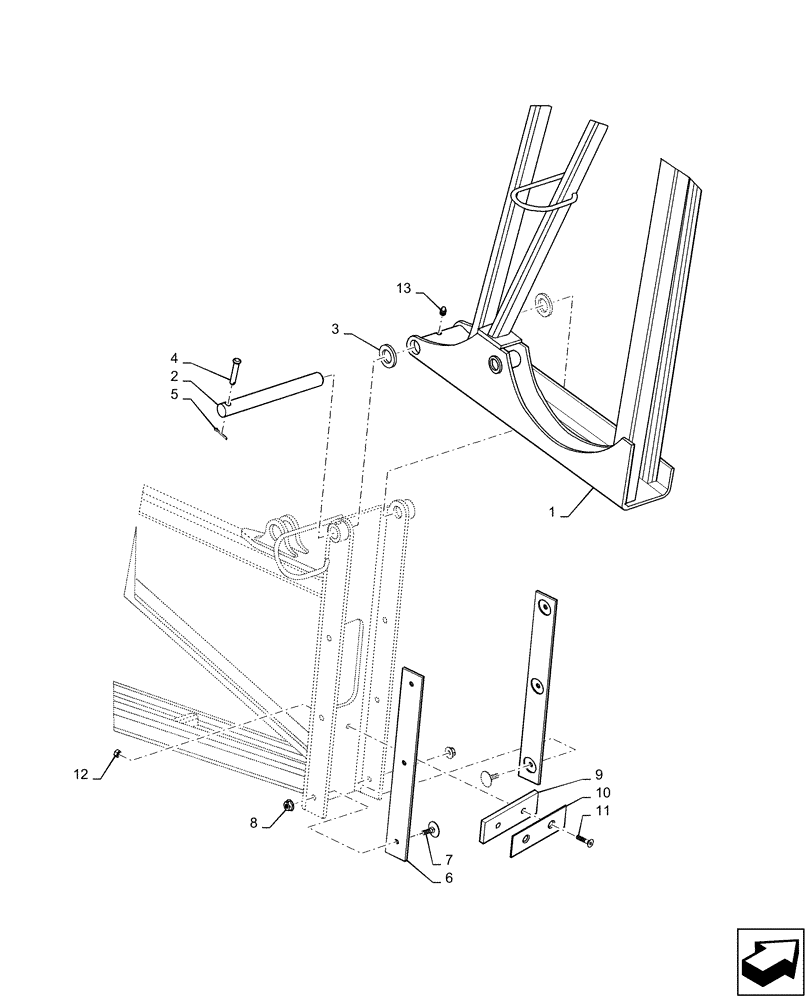

Схема запчастей Case IH PATRIOT 3340 - (39.130.AB[08]) - RH OUTER BOOM, 90/100 BOOM (39) - FRAMES AND BALLASTING
13
4
3
11
9
7
8
12
6
5
10
1
2

Артикул

Название

Примечание

Количество

1

87683498

BOOM

Outer, RH, 90'/100'

1шт.

2

BN307893

PIN,25.4mm OD x 236.47mm L

Outer Boom Fold

1шт.

3

87529311

WASHER,26mm ID x 44mm OD x 5mm Thk

26mm x 44mm x 5 mm, HDN, DOR

2шт.

4

87344036

PIN,9.53mm OD x 54.36mm L

Headed, 3/8"

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1шт.

6

BN69856

PLATE

Liner, Cradle

2шт.

7

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

6шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

6шт.

9

BN305437

BUMPER

Vertical Fold

1шт.

10

87266608

STEEL PLATE

Fold Bumper

1шт.

11

280591

HEX SOC SCREW,Flat Hd, 5/16" - 18 x 1 1/4"

2шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

13

BN302051

NIPPLE, LUBE,M8 x 1, Straight

2шт.

Выбрано товаров: 13
