Запчасти Case IH PATRIOT 3340 (39.130.AB[03]) - LH INNER BOOM SECTION, 90/100, BOOM (39) - FRAMES AND BALLASTING

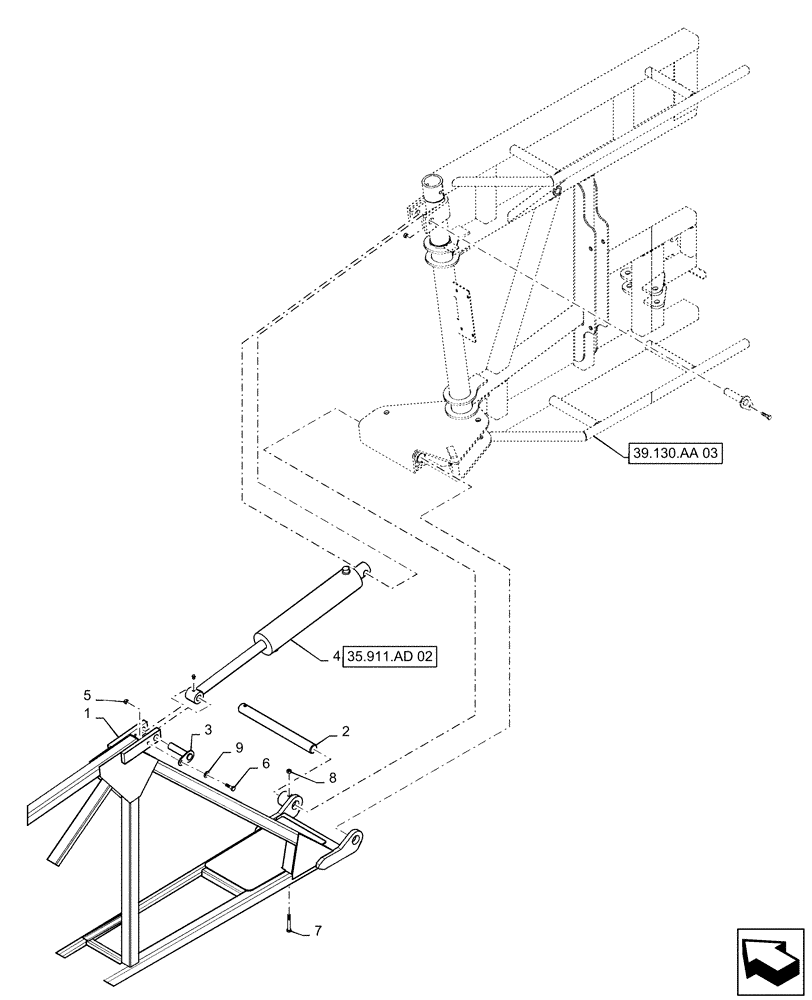

Схема запчастей Case IH PATRIOT 3340 - (39.130.AB[03]) - LH INNER BOOM SECTION, 90/100, BOOM (39) - FRAMES AND BALLASTING
35.911.ad 02
3
5
1
8
2
9
6
7
39.130.aa 03
4

Артикул

Название

Примечание

Количество

1

84558487

BOOM

Inner Boom Section, LH

1шт.

2

BN326079

PIN,38.1mm OD x 408.94mm L

Boom Pivot

1шт.

3

BN305621

PIN

Boom Level Cylinder

2шт.

4

87266461

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 533.4mm Stroke

Boom Level, 3.00 x 21 x 1.50

1шт.

See 35.911.AD 02 For Service Parts

1шт.

4

87266461R

REMAN-HYD CYLINDER

Reman for New PN 87266461

1шт.

4

87266461C

CORE-HYD CYLINDER

Return Number

1шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

6

86980403

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

7

87342784

BOLT

3/8-16 x 3 1/2", G5

1шт.

8

87343970

NUT,3/8"-16, G8, DOR

1шт.

9

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

Выбрано товаров: 12
