Запчасти Case IH PATRIOT 3340 (35.911.AM[02]) - PRODUCT CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS

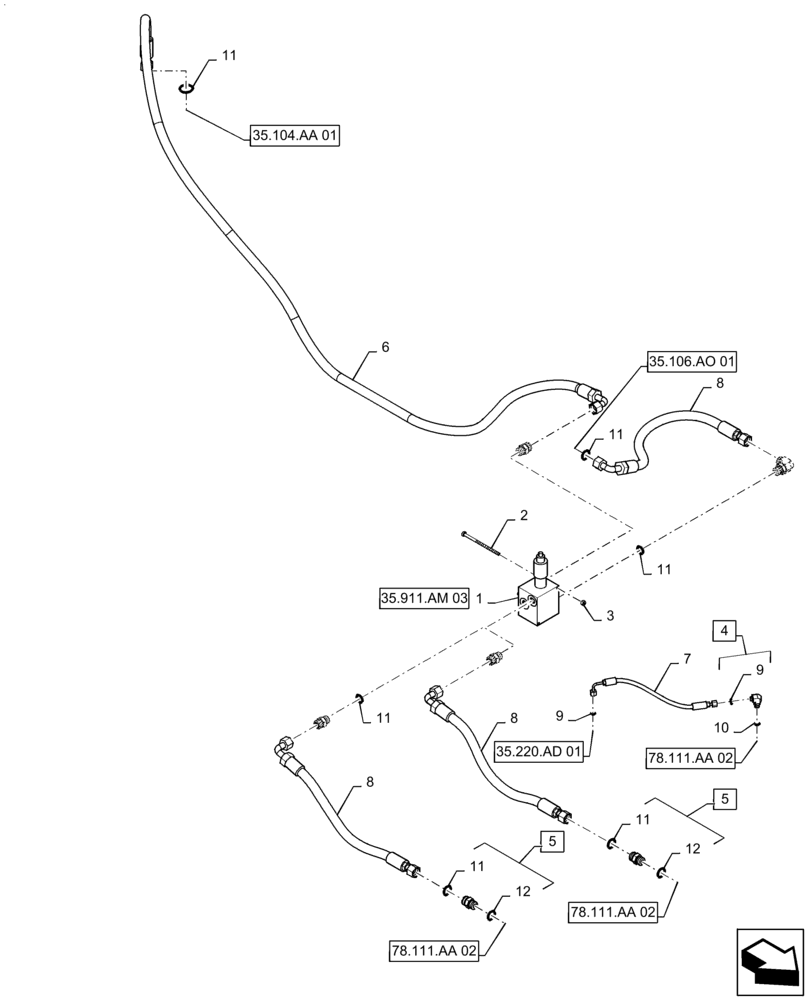

Схема запчастей Case IH PATRIOT 3340 - (35.911.AM[02]) - PRODUCT CONTROL VALVE ASSY (35) - HYDRAULIC SYSTEMS
8
1
12
6
8
35.106.ao 01
11
4
9
78.111.aa 02
78.111.aa 02
3
7
2
11
11
35.104.aa 01
5
11
35.911.am 03
10
35.220.ad 01
5
9
11
12
8
11
78.111.aa 02

Артикул

Название

Примечание

Количество

1

84333717

VALVE

Product Pump, With Fittings

1шт.

See 35.911.AM 03 For Service Parts

1шт.

2

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

2шт.

3

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

4

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB, Incl 9 - 10

1шт.

5

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Incl 11 - 12

2шт.

6

47519922

HOSE

1-3/16"-12 ORFS Swivel Short Straight x 1-3/16"-12 ORFS Swivel Short Elbow x 3/4" ID x 125-3/8" Long, Gear Pump To Control Valve

1шт.

7

47443001

HOSE

9/16-18 ORFS Swivel Short Straight x 9/16-18 ORFS Swivel Medium Elbow x 1/4" ID x 20" Long, Product Pump To Steel Lines

1шт.

8

86986096

HOSE,19.05mm ID x 736.6mm L, SAE 100R17

1-3/16"-12 ORFS Swivel Short Straight x 1-3/16"-12 ORFS Swivel Short Elbow x 3/4" ID x 29" Long, Control Valve To Manifold And Product Pump

3шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

12

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

6шт.

Выбрано товаров: 13
