Запчасти Case IH PATRIOT 3340 (35.911.AD[04]) - OUTER BOOM FOLD CYLINDER, 120 (35) - HYDRAULIC SYSTEMS

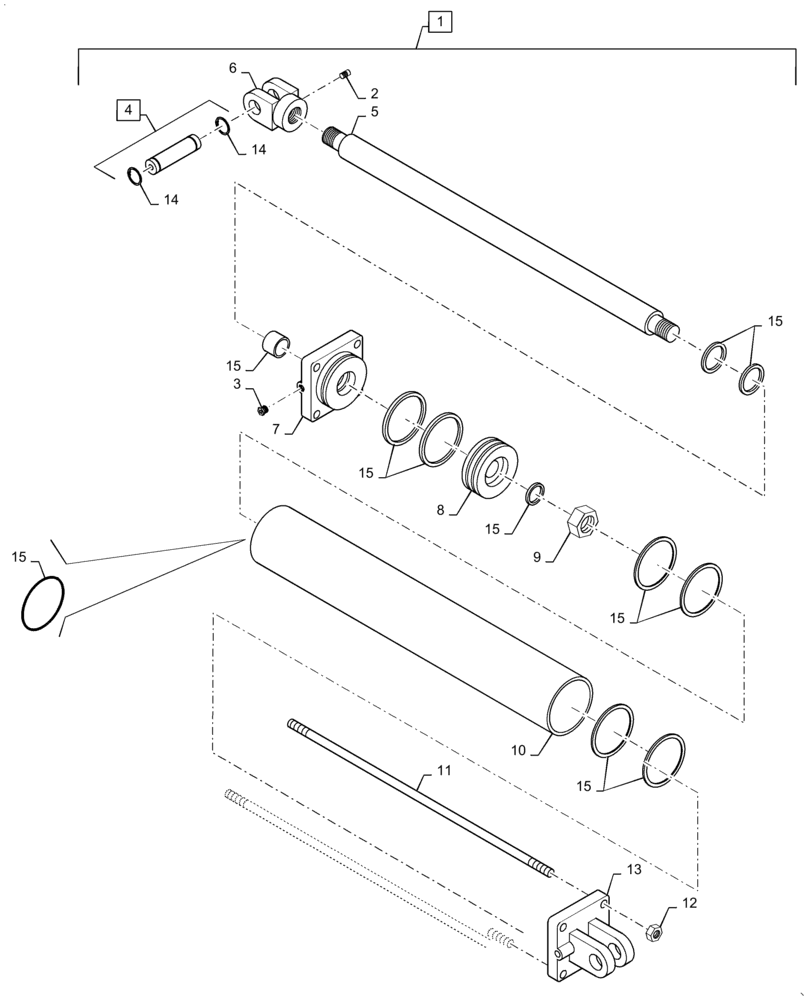

Схема запчастей Case IH PATRIOT 3340 - (35.911.AD[04]) - OUTER BOOM FOLD CYLINDER, 120 (35) - HYDRAULIC SYSTEMS
15
3
14
14
2
13
10
15
5
15
4
12
1
9
11
15
6
7
15
8
15
15

Артикул

Название

Примечание

Количество

1

87505171

HYDRAULIC CYLINDER,31.75mm Rod, 406.4mm Stroke

Outer Boom Fold, 2 - 1/2" x 16", 1 - 1/4" Rod, Incl 2 - 15

1шт.

2

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

3

6944

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

4

3326

PIN

1" x 2 - 7/8", Incl 14

1шт.

5

87577842

SHAFT

1 - 1/4" x 16" Stroke

1шт.

6

7997

CLEVIS

1 - 1/8" - 12 Thread, 1" Pin

1шт.

7

87409409

HEAD

Cylinder Front

1шт.

8

439277A1

PISTON

2 - 1/2" Dia

1шт.

9

425038A1

NUT

3/4" - 16, GA

1шт.

10

87577843

TUBE,2.6 mm DIA x 16 mm L

1шт.

11

87577844

THREADED TIE-ROD

Hydraulic Cylinder

4шт.

12

9628503

NUT,3/8"-16, G5

8шт.

13

87409437

HEAD

Cylinder Base

1шт.

14

87019495

SNAP RING,#98, Ext

Incl in 4

2шт.

15

87577841

SEAL KIT

2 - 1/2" Cylinder, Used on Ref 1

1шт.

Выбрано товаров: 15
