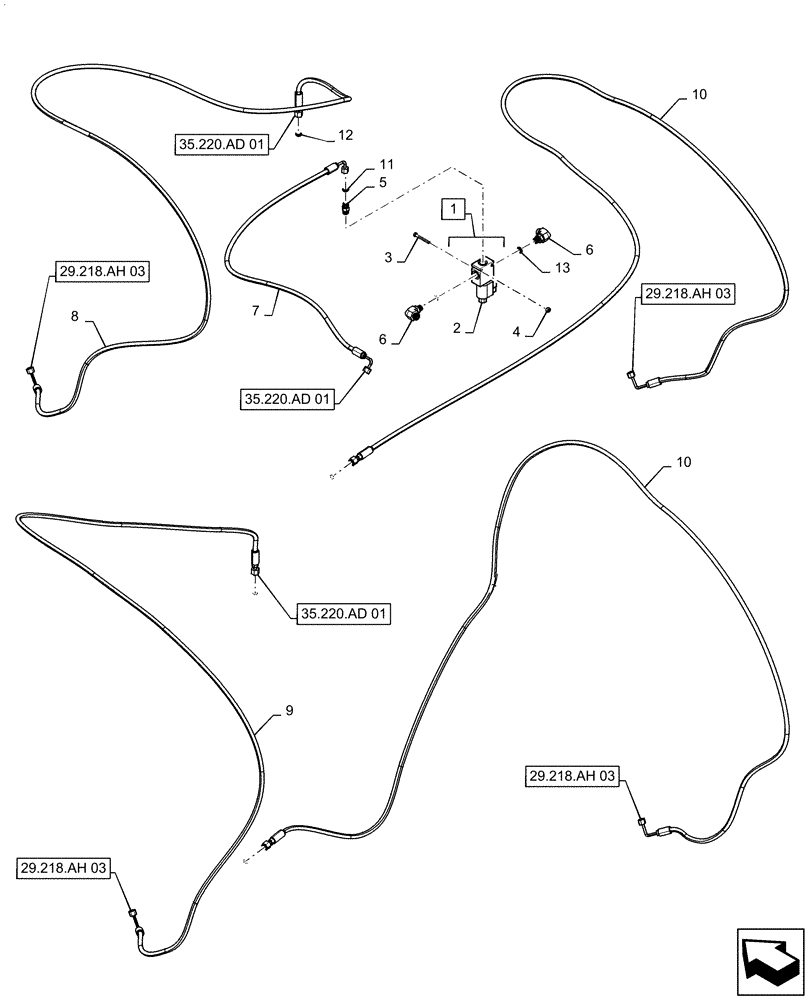

Запчасти Case IH PATRIOT 3240 (29.218.AS[02]) - MOTOR CONTROL LINES (29) - HYDROSTATIC DRIVE

1

87269798

HYDRAULIC VALVE

Motor Control, Incl 2

1шт.

2

87601672

HYDRAULIC VALVE

Cartridge

1шт.

3

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

5

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

6

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

7

84586220

HOSE

9/16 -18 ORFS Swivel Medium Elbow x 9/16 -18 ORFS Swivel Medium Elbow x 1/4" ID x 49" Long, Steel Line To Motor Control

1шт.

8

87271558

HOSE

11/16 -16 ORFS Swivel, Straight, Short x 11/16 -16 ORFS Swivel Short, 45, x 3/8" ID x 146" Long, Steel Line To Wheel Motor

1шт.

9

87574766

HOSE

11/16 -16 ORFS Swivel, Straight, Short x 11/16 -16 ORFS Swivel Short, 45, x 3/8" ID x 142" Long, Steel Line To Wheel Motor

1шт.

10

87574767

HOSE

11/16 -16 ORFS Swivel, Straight, Short x 11/16 -16 ORFS Swivel Short, 45, x 3/8" ID x 178" Long, Steel Line To Wheel Motors

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

13

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
