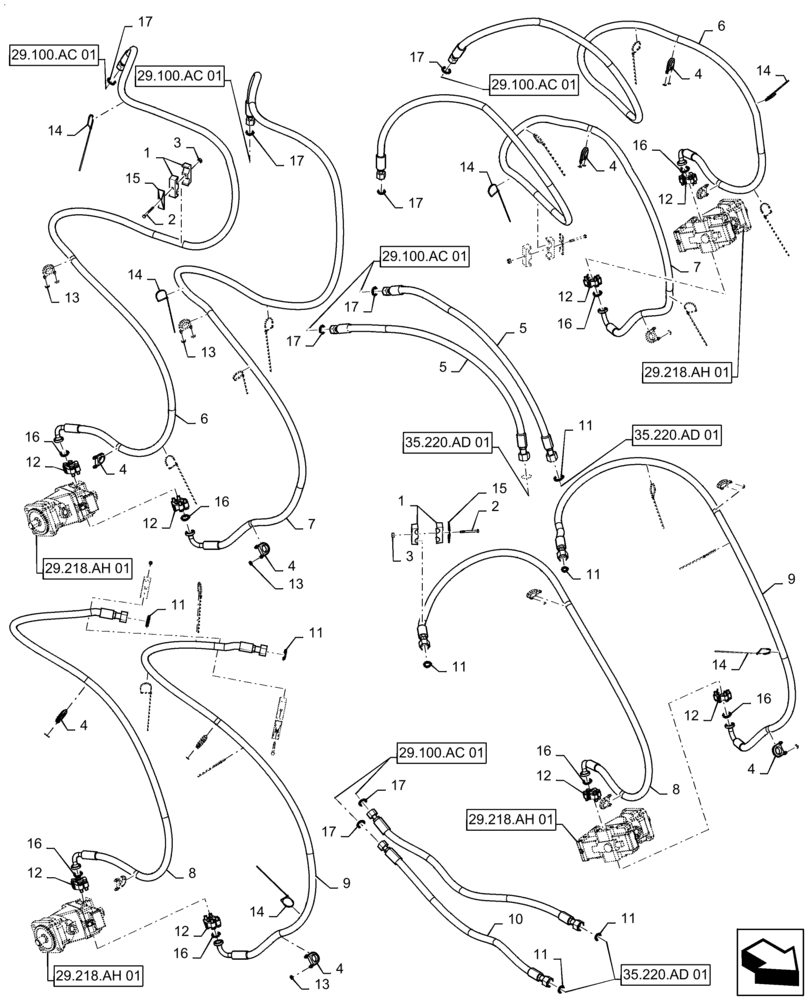

Запчасти Case IH PATRIOT 3240 (29.218.AS[01]) - DRIVE LINES (29) - HYDROSTATIC DRIVE

1

BN309849

CLAMP

Dual, 1-1/4"

4шт.

2

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

3

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

4

BN57235

CLAMP

Assembly, 1"

16шт.

5

87516936

HOSE,19.05mm ID x 1574.8mm L, SAE 100R13

1-3/16" -12 Female ORFS Short Swivel x 1-7/16 -12 Female ORFS Short Swivel LH And RH Pumps To Upper Steel Lines

2шт.

6

87607922

HOSE,19.05mm ID x 4953mm L

Male Code 62 Flange Short Elbow x 1-3/16" -12 Female ORFS Short Swivel, LH And RH Pumps To Upper Rear Wheel Motor Port

2шт.

7

87477280

HYDRAULIC HOSE,19mm ID x 5258mm L, SAE 100R13

Male Code 62 Flange Short Elbow x 1-3/16" -12 Female ORFS Short Swivel, LH And RH Pumps To Upper Rear Wheel Motor PortLH And RH Pumps To Lower Rear Wheel Motor Port

2шт.

8

87270912

HOSE,19.05mm ID x 2946.4mm L

Male Code 62 Flange Short Elbow x 1-7/16 -12 Female ORFS Short Swivel Lower Steel line To Upper Front Wheel Motor Port

2шт.

9

87270913

HOSE,19.05mm ID x 3175mm L

Male Code 62 Flange Short Elbow x 1-7/16 -12 Female ORFS Short Swivel Upper Steel line To Lower Front Wheel Motor Port

2шт.

10

84605994

HYDRAULIC HOSE

1-3/16" -12 Female ORFS Short Swivel x 1-7/16 -12 Female ORFS Short Swivel, 19mm ID x 1270mm Long, LH And RH Pumps To Lower Steel Lines

2шт.

11

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

12

87270171

REPAIR KIT

3/4" Code 62 Metric, Incl 16

8шт.

13

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

16шт.

14

BN570007

STRAP

Zip Tie

30шт.

15

1324469C1

PLATE

Hose Clamp

4шт.

16

86503302

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

8шт.

17

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.
