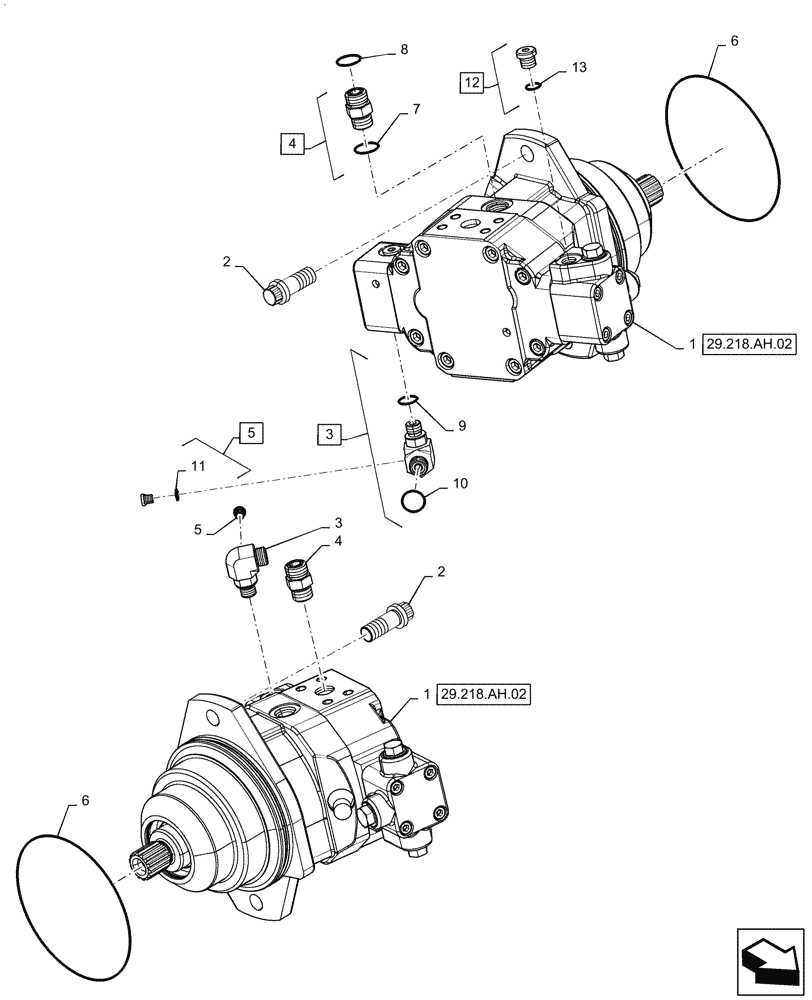

Запчасти Case IH PATRIOT 3240 (29.218.AH[01]) - WHEEL MOTORS (29) - HYDROSTATIC DRIVE

1

84476649

HYDRAULIC MOTOR,55CC

55cc

4шт.

84476649R

REMAN-HYD MOTOR

Reman 55cc

4шт.

84476649C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

868-16040

12 PT SCREW,M16 x 40mm, Cl 12.9

8шт.

3

87584271

ADAPTER

11/16-16 ORFS x 9/16-18 ORB, Reworked For Ref 5, Incl 9, 10

4шт.

4

BN302650

FITTING

13/16-16 ORFS x 3/4-16 ORB, Incl 7

4шт.

5

87595456

PLUG

5/16 - 24, Socket Head, Incl 11

4шт.

6

87603554

O-RING,4mm Thk x 150mm ID, 75 Duro

Wheel Motor

4шт.

7

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

8

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

10

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

11

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

4шт.

12

86598044

PLUG,Hex, M14 x 1.5 ORB

Socket Head, for M1, Gauge Port, Incl 13

1шт.

13

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
