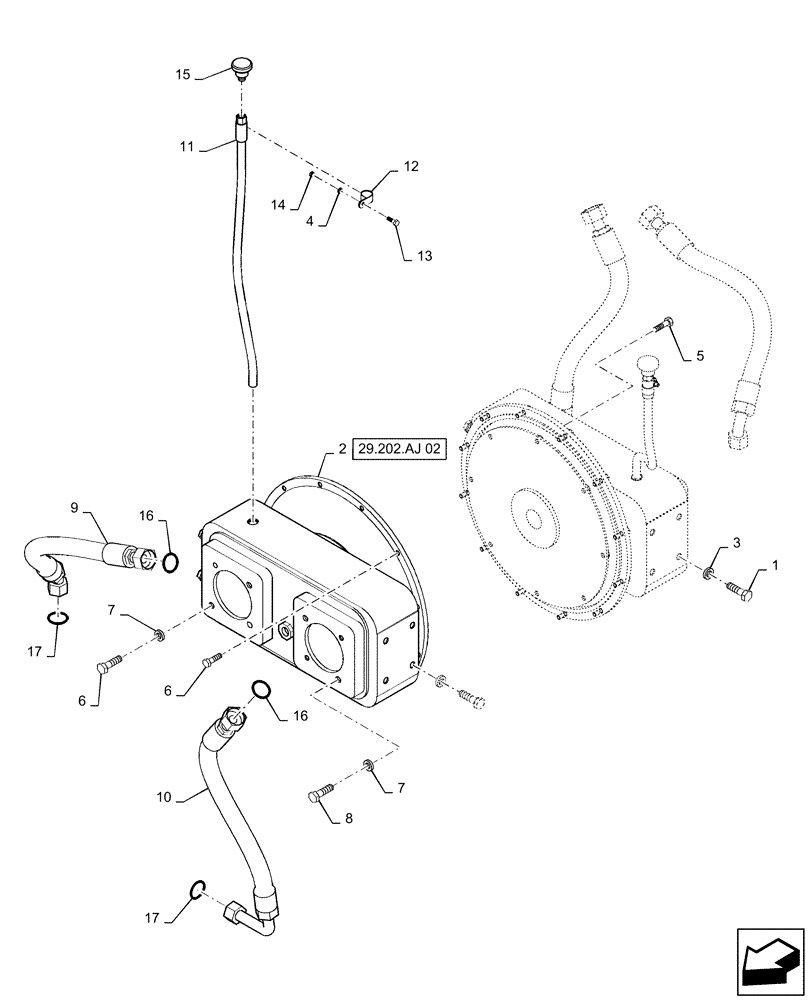

Запчасти Case IH PATRIOT 3240 (29.202.AJ[01]) - PUMP DRIVE (29) - HYDROSTATIC DRIVE

1

87605320

BOLT

Hex, 5/8"-11 x 1 1/2"

8шт.

2

84279492

DRIVE

Gear Box, Complete See 29.202.AJ 02 For Service Parts

1шт.

3

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

1шт.

5

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

8шт.

6

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

12шт.

7

87529241

WASHER,0.64" ID x 1.05" OD x 0.13" Thk

4шт.

8

87342850

BOLT

.625 x 2, DOR

4шт.

9

47514741

HOSE

1-11/16" -12 ORFS Swivel Short x 1-7/16" -12 ORFS Swivel Short 45 x 1" ID x 24" Long, LH Hydrostat To Reservoir

1шт.

10

47439193

HOSE

1-11/16" -12 ORFS Swivel Short x 1-7/16" -12 ORFS Swivel Long Elbow x 1" ID x 21-1/2" Long, RH Hydrostat To Reservoir

1шт.

11

87592184

HOSE

-8 x 762mm

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

13

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

15

84145402

FITTING

Breather

1шт.

16

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.
