(29.100.AC[15]) - RH HYDROSTATIC PUMP, INTERNAL GEAR ASSY

Запчасти Case IH PATRIOT 3240 (29.100.AC[15]) - RH HYDROSTATIC PUMP, INTERNAL GEAR ASSY (29) - HYDROSTATIC DRIVE

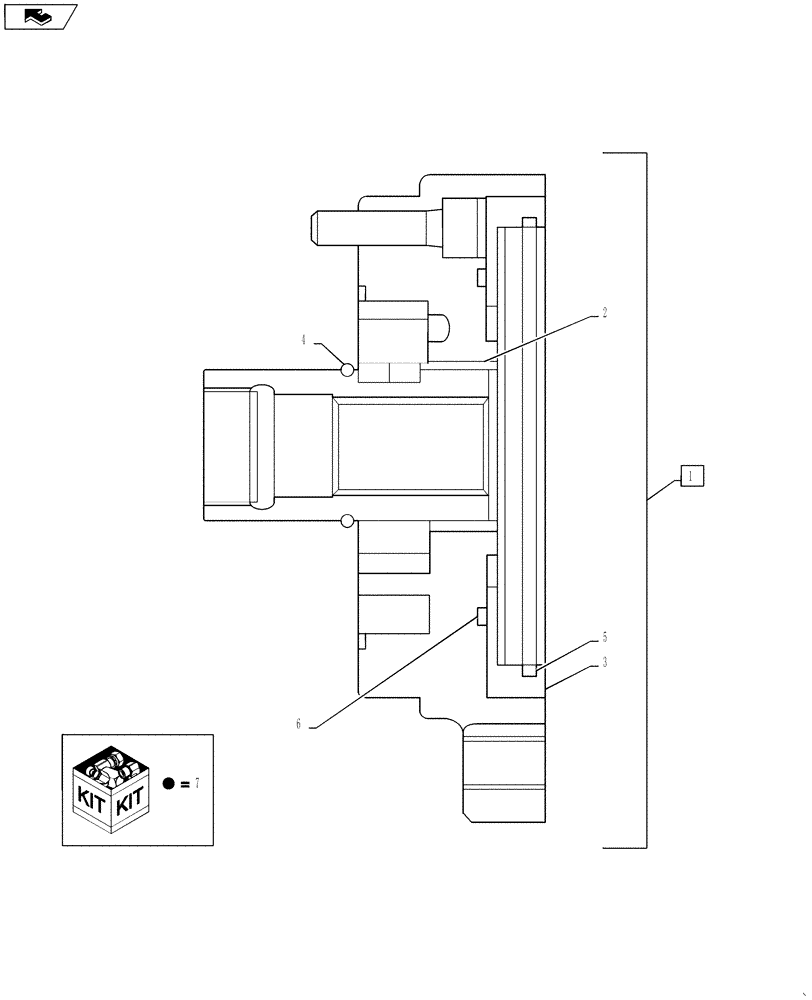

Схема запчастей Case IH PATRIOT 3240 - (29.100.AC[15]) - RH HYDROSTATIC PUMP, INTERNAL GEAR ASSY (29) - HYDROSTATIC DRIVE
7
1
3
5
6
home
4
2
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84416332

HYDRAULIC PUMP

Internal Gear Pump Assembly, Incl 2 - 7

1шт.

2

87601550

BUSHING

Bushing

1шт.

3

87730800

SPACER

1шт.

4

87601553

SNAP RING

Drive Shaft

1шт.

5

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

6

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

7

84579672

SEAL KIT

Internal Gear Pump

1шт.
