(29.100.AC[03]) - RH, 31T, HYDROSTATIC PUMP, BREAKDOWN

Запчасти Case IH PATRIOT 3240 (29.100.AC[03]) - RH, 31T, HYDROSTATIC PUMP, BREAKDOWN (29) - HYDROSTATIC DRIVE

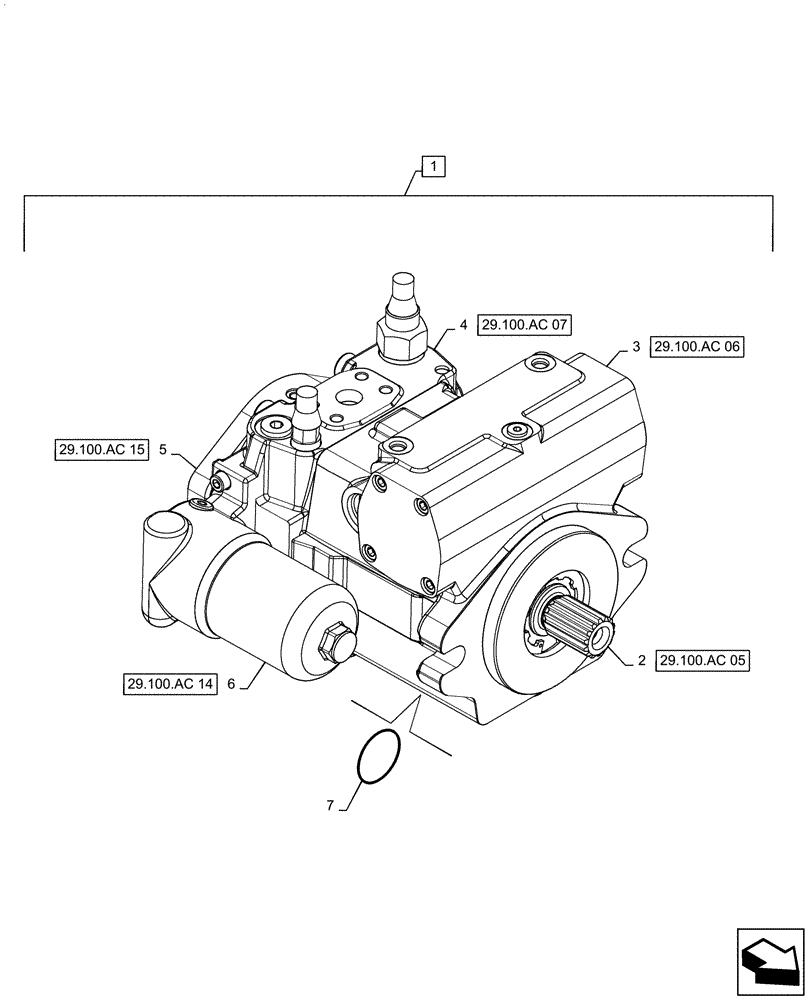

Схема запчастей Case IH PATRIOT 3240 - (29.100.AC[03]) - RH, 31T, HYDROSTATIC PUMP, BREAKDOWN (29) - HYDROSTATIC DRIVE
3
5
2
4
29.100.ac 07
6
29.100.ac 06
29.100.ac 05
1
29.100.ac 15
29.100.ac 14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84399370

HYDROSTATIC PUMP,56 CC

Complete Pump, 13 Tooth, Incl 2 - 7

1шт.

1

84399370R

REMAN-HYDROSTAT PUMP

3230 PATRIOT SPRAYER, Complete Pump, 13 Tooth, SN YCT032640 AND AFTER (7/09-)

1шт.

1

84399370C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

87601537

KIT

Rotary Group, Hydrostatic Pump, LH Rotation

1шт.

See 29.100.AC 05 For Service

1шт.

3

87601538

CONTROL

Hydraulic

1шт.

See 29.100.AC 06 For Service

1шт.

4

84578941

PLATE

Port, With Valves

1шт.

See 29.100.AC 16 For Service

1шт.

5

84416332

HYDRAULIC PUMP

Internal Gear Pump Assembly

1шт.

See 29.100.AC 15 For Service

1шт.

6

84554579

HYDRAULIC OIL FILTER

Charge Pump

1шт.

See 29.100.AC 14 For Service

1шт.

7

87601542

SEAL KIT

Complete

1шт.

Выбрано товаров: 14
