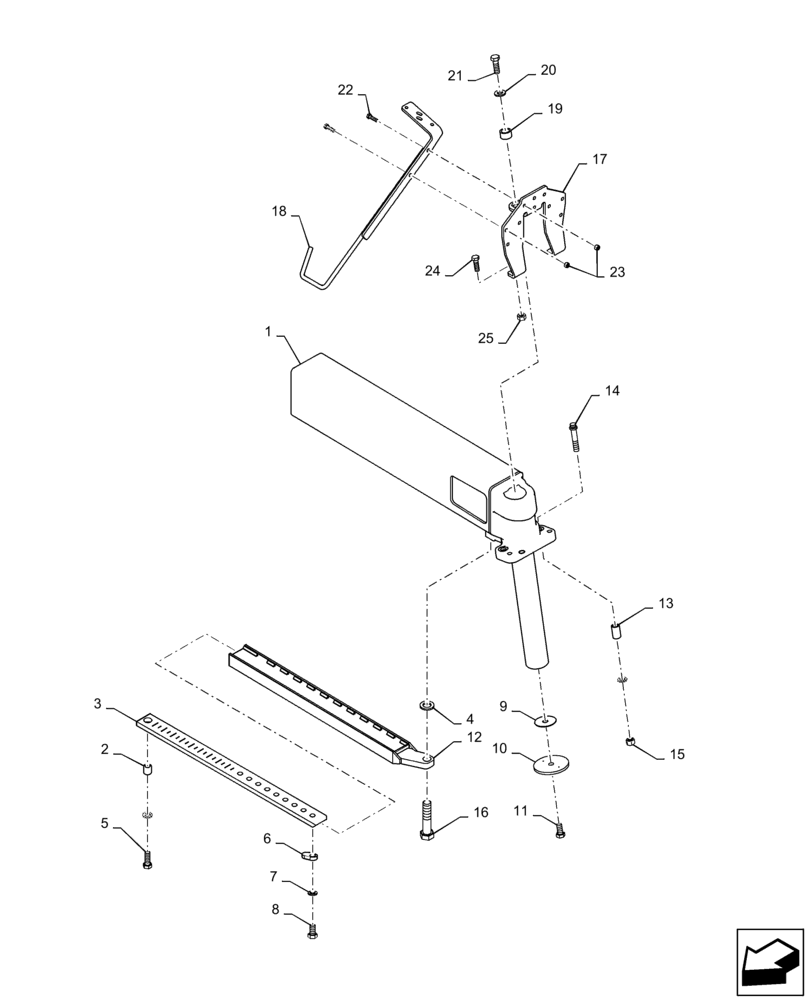

Запчасти Case IH PATRIOT 3240 (27.100.AK[01]) - REAR AXLE ASSY, LH (27) - REAR AXLE SYSTEM

1

87721678

AXLE

LH, Rear

1шт.

2

BN301998

DOWEL

Hollow

1шт.

3

87540210

SLIDE

Bar, Axle

1шт.

4

87529307

WASHER,22mm ID x 37mm OD x 4mm Thk

6шт.

5

87342045

BOLT,Hex, M20 x 2.5 x 55, Class 10.9, DOR

1шт.

6

BN320759

STOP

Tab, Axle Adjust

1шт.

7

86642462

LOCK WASHER,M20

Helical Spring

1шт.

8

87635862

BOLT,Hex, M20 x 35mm, Cl 10.9

1шт.

9

BN312604

SPACER

Shim, Axle

1шт.

10

BN302052

WASHER,20.32mm ID x 139.7mm OD

1шт.

11

87342019

BOLT,Hex, M20 x 2.5 x 40mm, Class 10.9, Full Thd, DOR

1шт.

12

87268928

SLIDE

Weld, Axle Adjust, LR

1шт.

13

342939A1

SLEEVE

Hollow Dowel

2шт.

14

87268646

BOLT,M20 x 2.5 x 100mm, Cl 12.9

2шт.

15

87024336

NUT,M20 x 2.5, Cl 10

2шт.

16

87342001

BOLT,Hex, M20 x 90, Class 10.9, DOR

2шт.

17

87266807

MOUNTING PLATE

Weld, Hose Pivot

1шт.

18

87615322

STOP DEVICE

Hose, Mount Weldment

1шт.

19

87390349

BUSHING

Hose Pivot

1шт.

20

87310608

WASHER,22mm ID x 44mm OD x 5mm Thk

1шт.

21

86980460

BOLT,Hex, M20 x 60mm, Cl 8.8

1шт.

22

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

23

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.

24

87341829

BOLT,Hex, M16 x 65mm, Cl 8.8

2шт.

25

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
