(90.160.BL[02]) - RIGHT SIDE FENDER COVER AND C POST

Запчасти Case IH PATRIOT 3240 (90.160.BL[02]) - RIGHT SIDE FENDER COVER AND C POST (90) - PLATFORM, CAB, BODYWORK AND DECALS

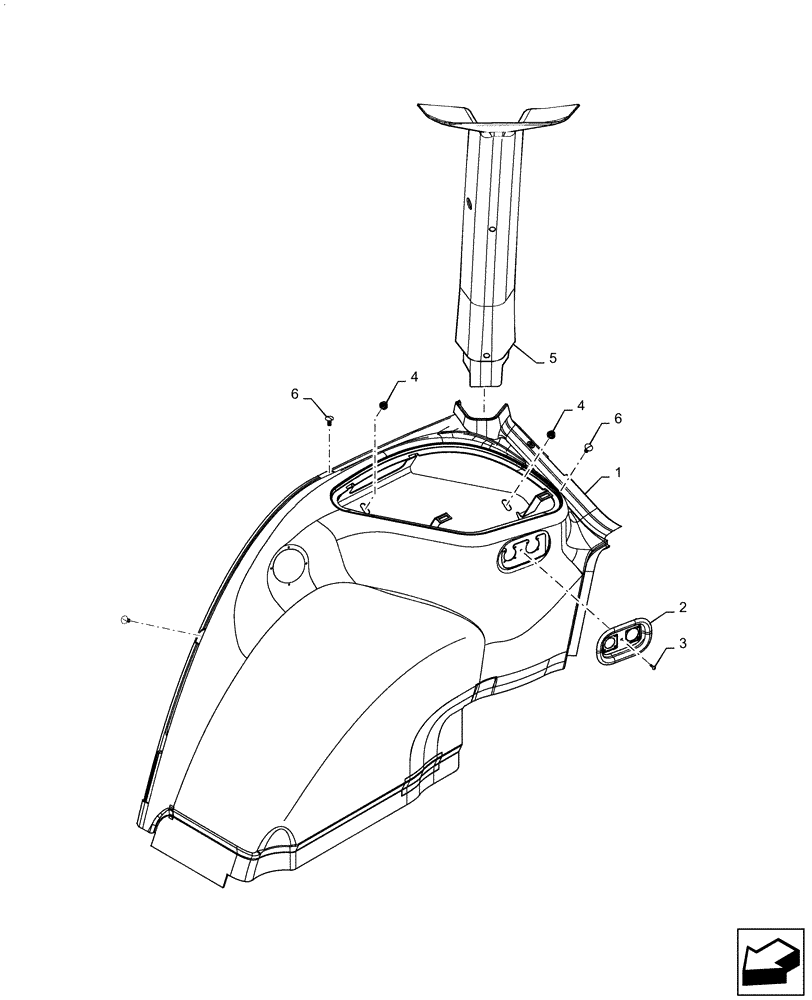

Схема запчастей Case IH PATRIOT 3240 - (90.160.BL[02]) - RIGHT SIDE FENDER COVER AND C POST (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
6
6
4
3
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87444946

TRIM PANEL

RH Fender

1шт.

2

428192A2

BEZEL

RH Fender Trim

1шт.

3

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

5

355098A1

TRIM PANEL

RH C Post

1шт.

5

87542375

TRIM PANEL

RH C Post Used With Auto Guidance

1шт.

6

93199C1

FASTENER

Rachet

6шт.
