Запчасти Case IH PATRIOT 3240 (90.160.AX[01]) - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

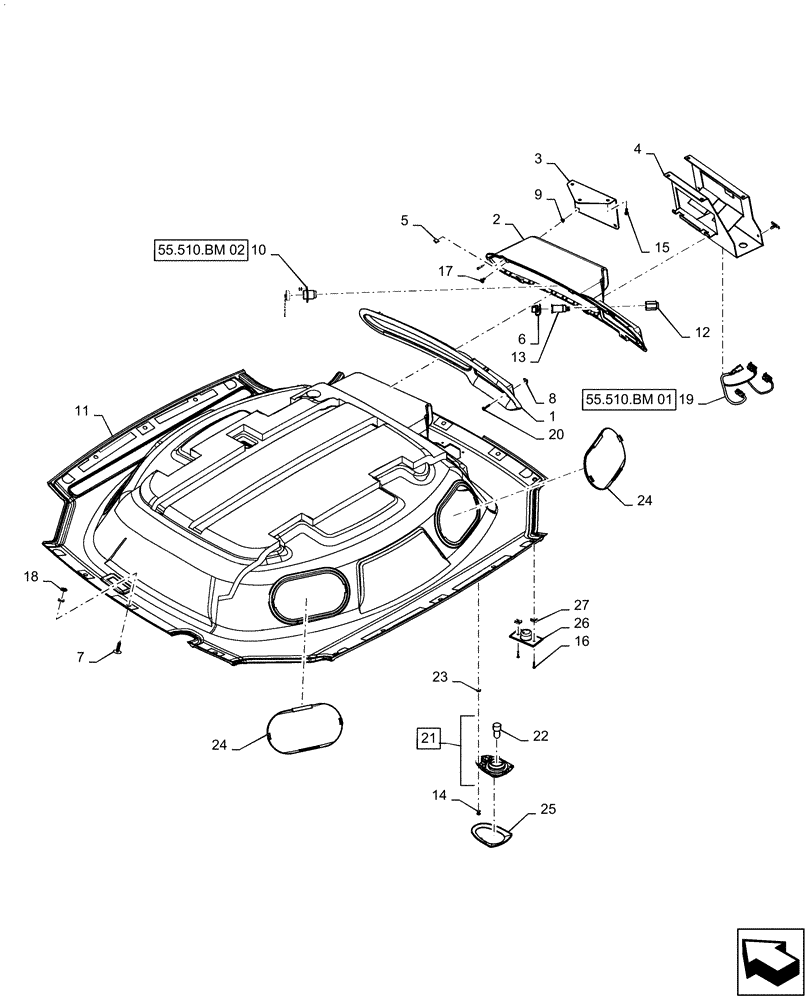

Схема запчастей Case IH PATRIOT 3240 - (90.160.AX[01]) - HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
24
27
16
6
25
4
5
3
19
24
12
13
22
1
17
20
11
9
10
7
14
2
23
18
55.510.bm 02
15
21
8
55.510.bm 01

Артикул

Название

Примечание

Количество

1

358794A2

BEZEL

Storage Shelf

1шт.

2

358795A1

BOX

Storage Shelf

1шт.

3

409205A2

BRACKET

Storage Shelf

1шт.

4

428264A5

BRACKET

Radio Mount

1шт.

5

308538A2

CLIP

Storage Shelf

6шт.

6

190812A1

COVER

Lighter

1шт.

7

87621184

FASTENER

Button, Tree Clip

16шт.

8

84148337

SPRING NUT

4.8

2шт.

9

322072A2

FASTENER

Plastic Expansion

2шт.

10

227739A2

POWER SOCKET

Auxiliary Power

2шт.

See 55.510.BM 02 For Service Parts

1шт.

11

84493164

HEADLINER,Deluxe CIH, With Bluetooth Mic Cut-out

Deluxe / Luxury

1шт.

12

308905A1

CIGARETTE LIGHTER

Retainer, Power Outlet

1шт.

13

308904A1

CIGARETTE LIGHTER

Power Outlet

1шт.

14

151-543

RIVET,Pop, 3.17mm OD x 10.16mm L

12шт.

15

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

, Serial Range: -YFT041439

7шт.

15

758-6

SELF-TAP SCREW,Hex Hd, M6.3 x 19

, Start Serial: YFT041440

7шт.

16

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.

17

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

87414960

HARNESS

Shelf

1шт.

See 55.510.BM 01 For Service Parts

1шт.

20

360362A1

CAPTIVE WASHER SCREW

Wheat Head

1шт.

21

87414959

LAMP

Incl 22

1шт.

22

373114A1

BULB

Incl in 21

1шт.

23

87698771

WASHER,0.13" ID x 0.38" OD x 0.04" Thk

Rivet

4шт.

24

358683A1

GRILLE

Speaker Cover

4шт.

25

360364A1

BEZEL

Map Light

1шт.

26

47466806

CONSOLE LAMP,LED, 12V, Amber

LED

1шт.

27

442244A1

SPRING NUT

U - Spring

2шт.

Выбрано товаров: 30
