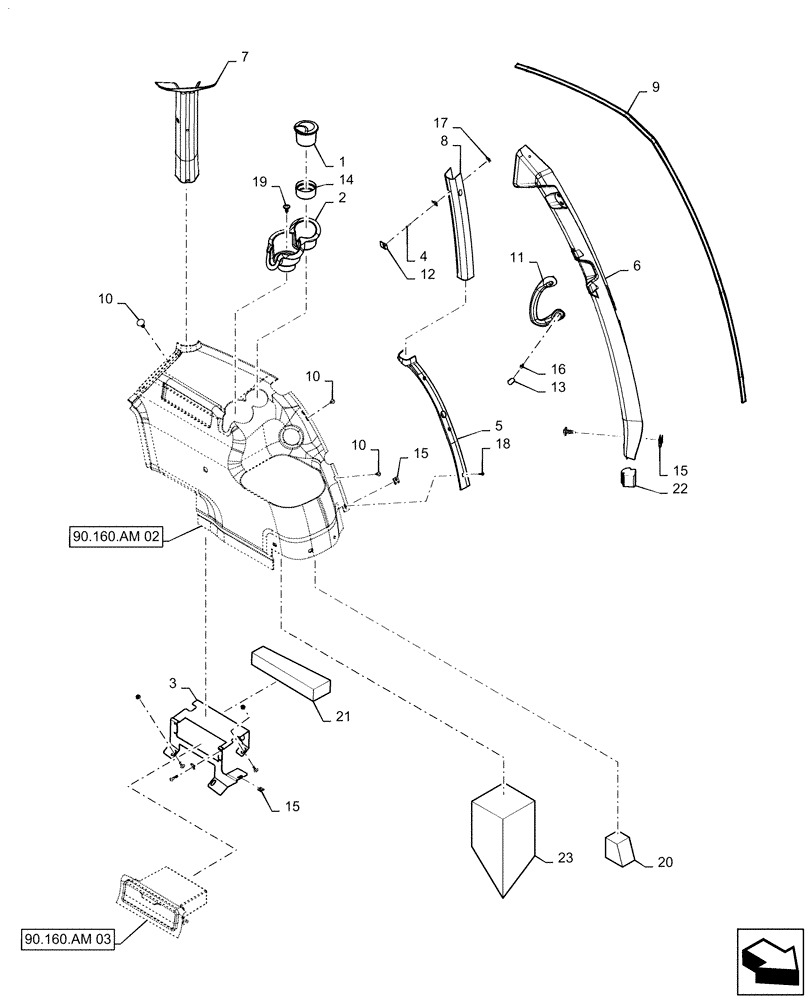

Запчасти Case IH PATRIOT 3240 (90.160.AM[01]) - LEFT SIDE CAB TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

302456A1

ASH TRAY

1шт.

2

358805A1

HOLDER

Cup Holder Trim

1шт.

3

87679383

BRACKET

1шт.

4

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

1шт.

5

87417629

TRIM PANEL

LH Fender

1шт.

6

87417632

TRIM PANEL

LH A Post Cover

1шт.

7

84313685

COVER

LH C Post

1шт.

8

355100A1

COVER

LH B Post

1шт.

9

87417638

RUBBER STRIP

Entryway

1шт.

10

93199C1

FASTENER

Rachet

7шт.

11

87413139

HANDLE

Grab, LH A Post

1шт.

12

3234176R1

COAT HOOK

1шт.

13

87413140

PLUG

Grab Handle

2шт.

14

301901A1

INSERT

Cup Holder

1шт.

15

131-839

SPRING NUT,U, #10-16, Panel type

10шт.

16

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

2шт.

17

177269A1

SPRING NUT,M4.2

1шт.

18

360362A1

CAPTIVE WASHER SCREW

Wheat Head

6шт.

19

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

2шт.

20

87421503

FOAM

LH Fender Trim Support

1шт.

21

336383A1

PAD

Upper Left Fender

1шт.

22

336384A1

PAD

RH A Post

1шт.

23

336385A1

PAD

Training Seat

1шт.

24

353-432

PLUG,7/8" Hole, Nylon

LH Outer A Post, Not Illustrated

1шт.

25

128209A1

PLUG

1/2" Hole, LH Outer A Post, Not Illustrated

1шт.
