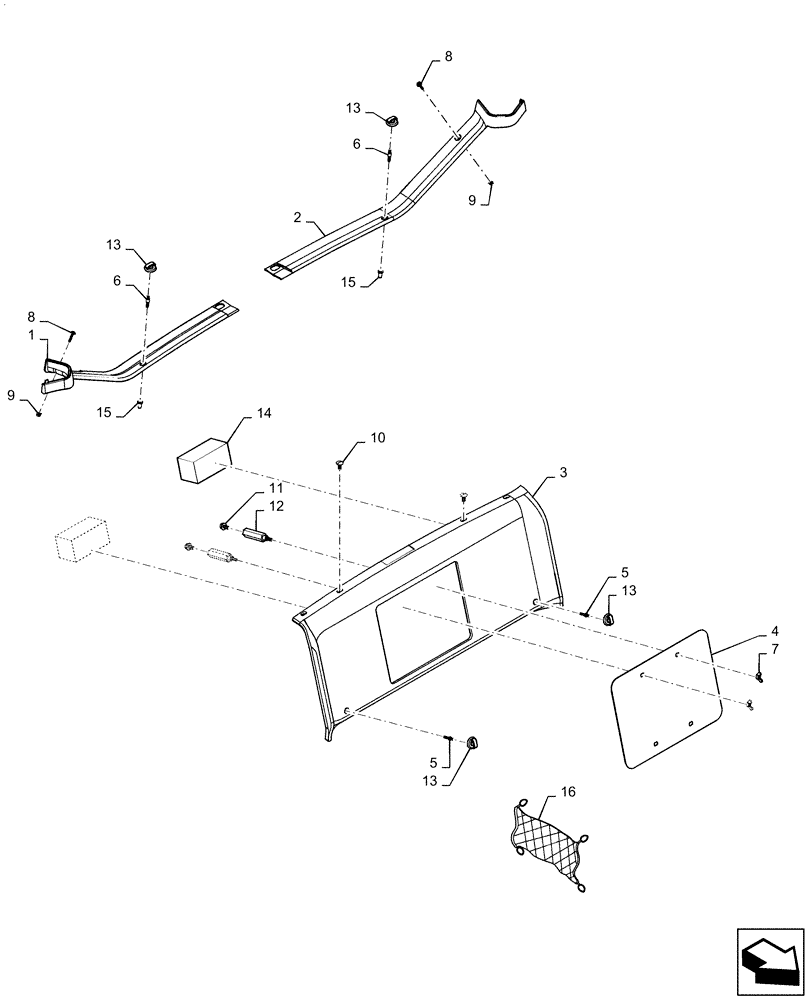

Запчасти Case IH PATRIOT 3240 (90.160.AH[01]) - REAR CAB TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87309901

TRIM PANEL

RH Bullhorn

1шт.

2

87309897

TRIM PANEL

LH Bullhorn

1шт.

3

87313020

TRIM PANEL

Rear Wall

1шт.

4

87532159

COVER

Acess

1шт.

5

322413A2

STUD

Cargo Net Hook

2шт.

6

87309745

STUD

Cargo Net Hook, Upper

2шт.

7

84814892

WING NUT,M6 x 1.0

4шт.

8

360362A1

CAPTIVE WASHER SCREW

Wheat Head

2шт.

9

322072A2

FASTENER

Expansion

2шт.

10

93199C1

FASTENER

Rachet

2шт.

11

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

12

87313014

SPACER,M8 x 1.25

Controller Mount

4шт.

13

359037A1

HOOK

Cargo Net

4шт.

14

87313017

FOAM

Block

2шт.

15

322073A1

NUT

M6, Rivnut

2шт.

16

359036A1

NET,Cargo

Cargo Net

1шт.
