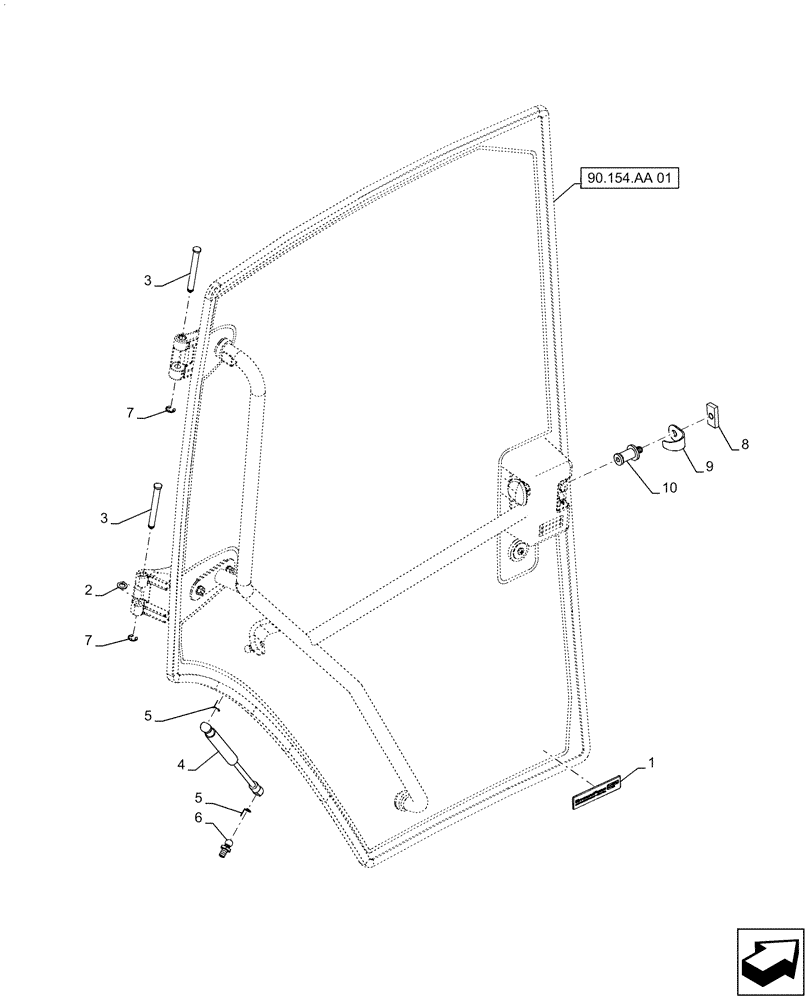

Запчасти Case IH PATRIOT 3240 (90.154.AA[02]) - LH CAB DOOR, HARDWARE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84390356

DECAL

Engine Power

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

3

178819A3

PIN,10mm OD x 94.55mm L

Lower Hinge

2шт.

4

1280263C1

CYLINDER ASSY.

Gas Strut

1шт.

5

3233348R1

CLIP

Ball Stud Retainer

2шт.

6

3234063R1

BALL STUD,M10 x 1.5

Stud

1шт.

7

800-439

CIRCLIP,M9

2шт.

8

275444A1

PLATE

Door Latch Pin

1шт.

9

321535A1

PROTECTOR

Door Striker

1шт.

10

321277A1

PIN,17.2mm OD x 52mm L

Lock

1шт.
