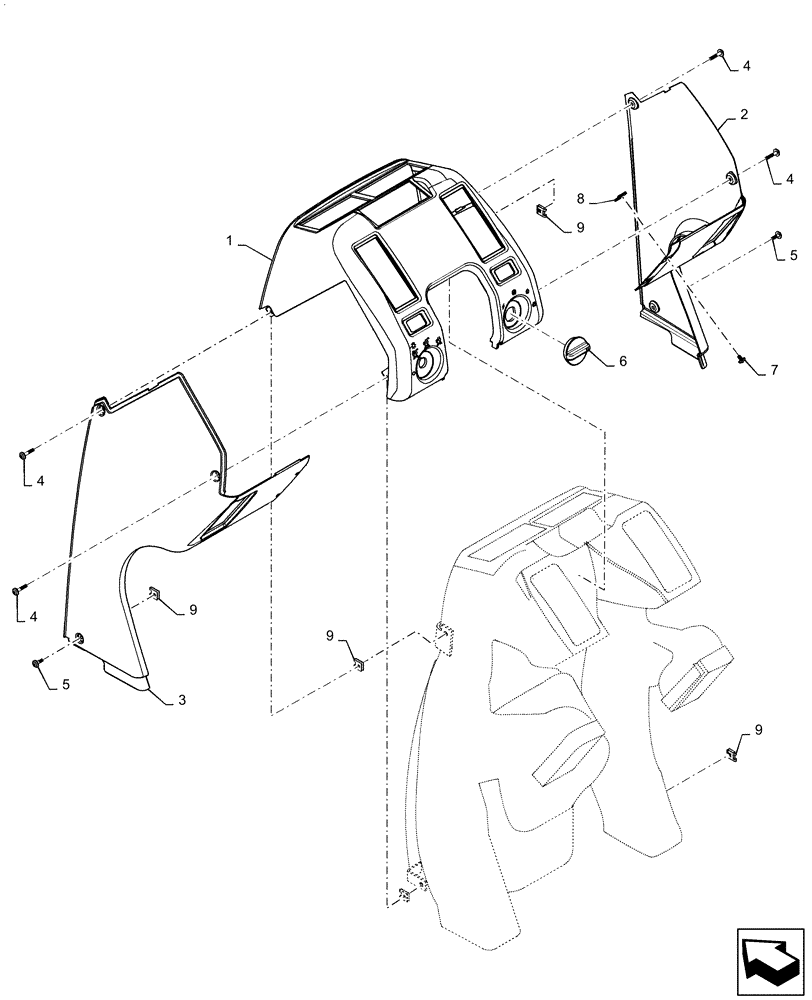

Запчасти Case IH PATRIOT 3240 (90.151.AN[01]) - FRONT CONSOLE TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87449853

COVER

Top Front Console

1шт.

2

358671A1

COVER

RH Panel

1шт.

3

358670A1

COVER

LH Panel

1шт.

4

360362A1

CAPTIVE WASHER SCREW

10-16 x 1, Wheat

4шт.

5

362394A1

CAPTIVE WASHER SCREW

10-16 x 5/8, Wheat

2шт.

6

1331046C2

KNOB

Rotary Light Switch

1шт.

7

360363A1

SCREW,Phillips Drive, Round HD, #10 - 16 x 3/8"

10-16 x 3/8, Wheat

2шт.

8

87016568

SPRING NUT,U, #10-16, Panel type

2шт.

9

87016569

SPRING NUT,U, #10-16, Panel type

4шт.
