(90.150.AE[01]) - CAB SUSPENSION

Запчасти Case IH PATRIOT 3240 (90.150.AE[01]) - CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

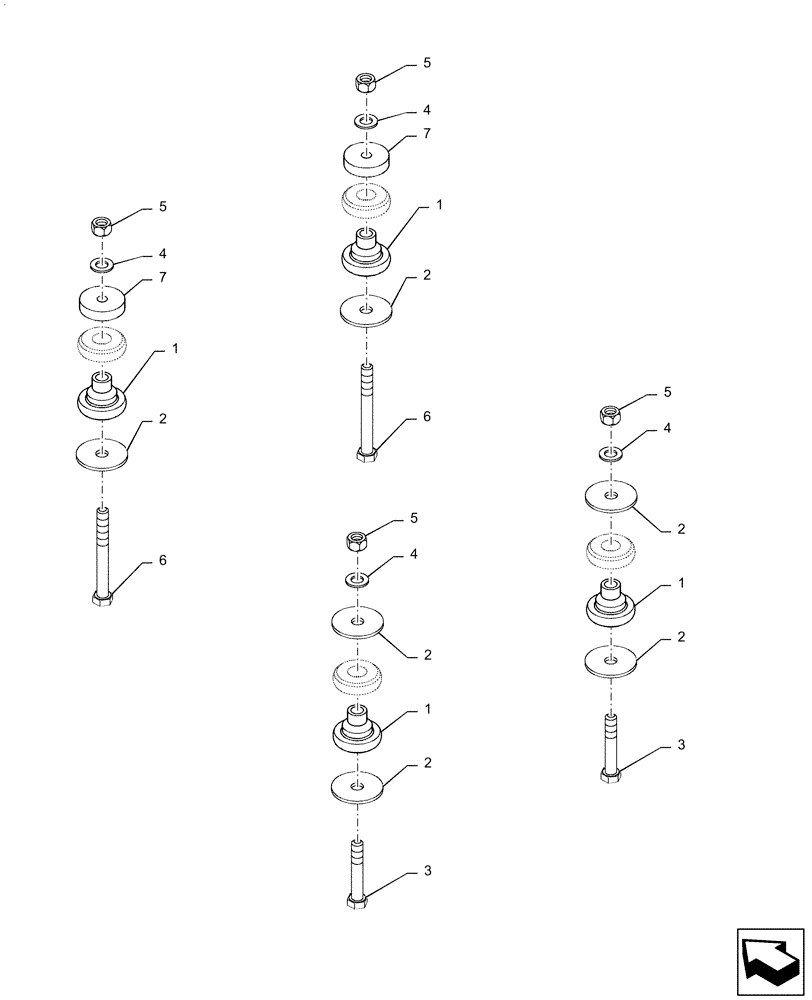

Схема запчастей Case IH PATRIOT 3240 - (90.150.AE[01]) - CAB SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
1
2
4
2
3
3
1
2
2
5
home
4
1
2
7
7
5
6
4
5
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

361187A1

ISOLATOR

Mount

4шт.

2

BN302284

WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk

Rebound

6шт.

3

87532211

BOLT,Hex, M22 x 130mm, Cl 10.9

2шт.

4

87529313

WASHER,24mm ID x 44mm OD x 4mm Thk

4шт.

5

87344025

NUT,Prev Torque, M22, 2.5 Pitch, Cl 10, DOR

4шт.

6

87532205

BOLT,Hex, M22 x 200mm, Cl 10.9

2шт.

7

87541873

SPACER

Cab Mount

2шт.
