Запчасти Case IH PATRIOT 3240 (90.124.AN[01]) - SEAT SUSPENSION ASSY, BSN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS

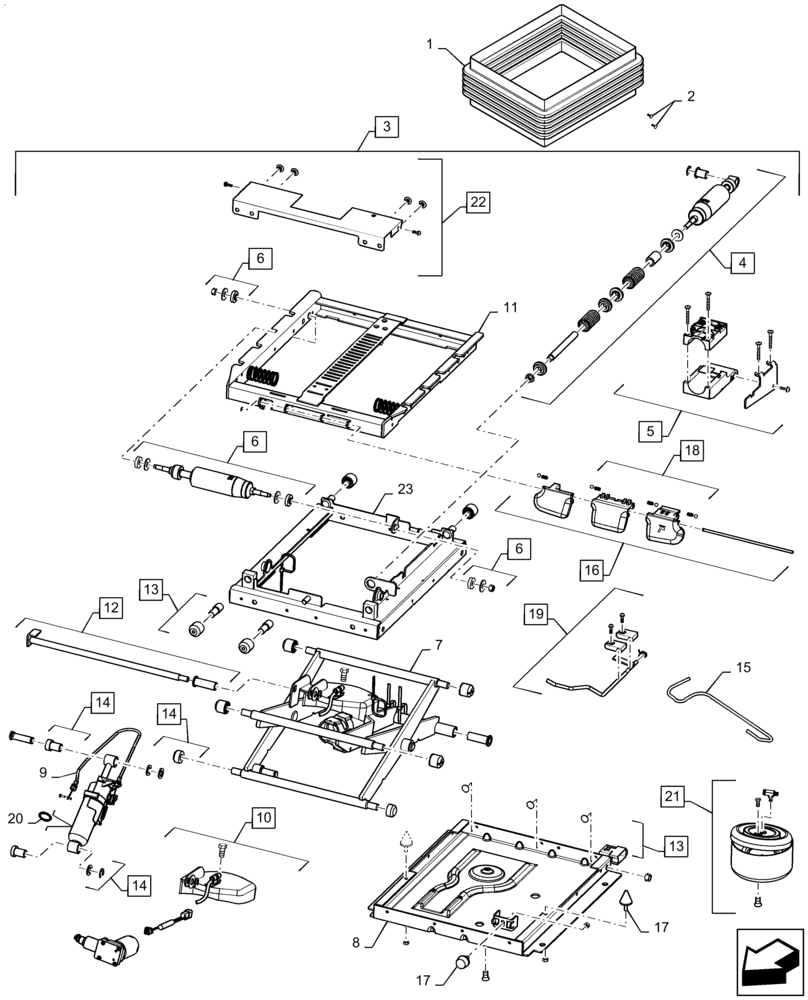

Схема запчастей Case IH PATRIOT 3240 - (90.124.AN[01]) - SEAT SUSPENSION ASSY, BSN YFT041440 (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
19
3
17
6
15
1
17
16
14
14
8
12
20
6
22
6
21
14
5
13
2
23
4
18
13
10
9
7

Артикул

Название

Примечание

Количество

1

87347943

SERVICE KIT

Suspension Boot

1шт.

2

333659A1

PACKAGE,SERVICE

Boot Button Kit

1шт.

3

84406039

SERVICE KIT

Complete, Incl 4 Through 23

1шт.

4

87347948

SERVICE KIT

Fore / Aft Spring And Shock Isolator

1шт.

5

333296A1

SERVICE KIT

Fore / Aft Mounting Block

1шт.

6

87347947

SERVICE KIT

Lateral Spring And Shock Isolator

1шт.

7

333276A1

ARM

Suspension

1шт.

8

333275A1

HOUSING

Lower

1шт.

9

87347955

CABLE

Shock Adjustment

1шт.

10

84392273

KIT

Compressor Service

1шт.

11

333274A2

ISOLATOR

Lateral

1шт.

12

302033A1

SHAFT

Shaft

1шт.

13

87347946

SERVICE KIT

Isolator Seat Rollers

1шт.

14

87347945

BEARING ASSY

Bearing And Roller Kit

1шт.

15

87396231

SERVICE KIT

Airline And Fittings

1шт.

16

373469A1

PACKAGE,SERVICE

Suspension Knob

1шт.

17

333295A1

BUMPER

Suspension Bumper

1шт.

18

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

19

373470A2

KIT

Fore / Aft Isolator Control

1шт.

20

447956A1

KIT

Adjustable Shock

1шт.

21

333279A2

KIT

Air Spring Service

1шт.

22

302029A2

PLATE

Cover

1шт.

23

333273A1

HOUSING

Upper

1шт.

Выбрано товаров: 23
