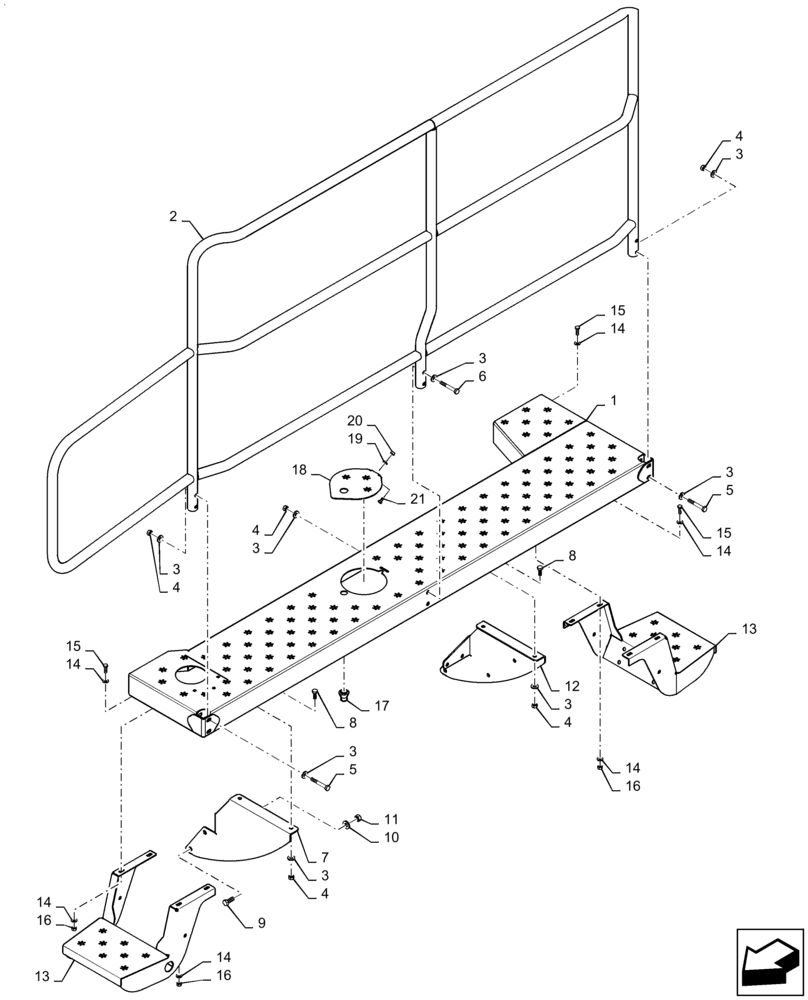

Запчасти Case IH PATRIOT 3240 (90.118.CB[03]) - MIDDLE WALKWAY, SN YFT041440, AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47461211

WALKWAY

Walkway, Mid

1шт.

2

84124836

HANDRAIL

Mid

1шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

24шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

14шт.

5

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10 x 1.5 x 70, 8.8, DOR

4шт.

6

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

7

87755407

MOUNT

Mid Walkway, Front

1шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

9

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

10

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4mm, DOR

4шт.

11

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

12

87474242

MOUNT

Mid Walkway, Front

1шт.

13

47917733

STEP

Walkway

2шт.

14

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

16

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

17

87270792

LATCH

Magnetic

1шт.

18

47649838

COVER

Access, Walkway

1шт.

19

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

20

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

21

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

1шт.
