(90.108.AB[01]) - DECALS, APPEARANCE

Запчасти Case IH PATRIOT 3240 (90.108.AB[01]) - DECALS, APPEARANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS

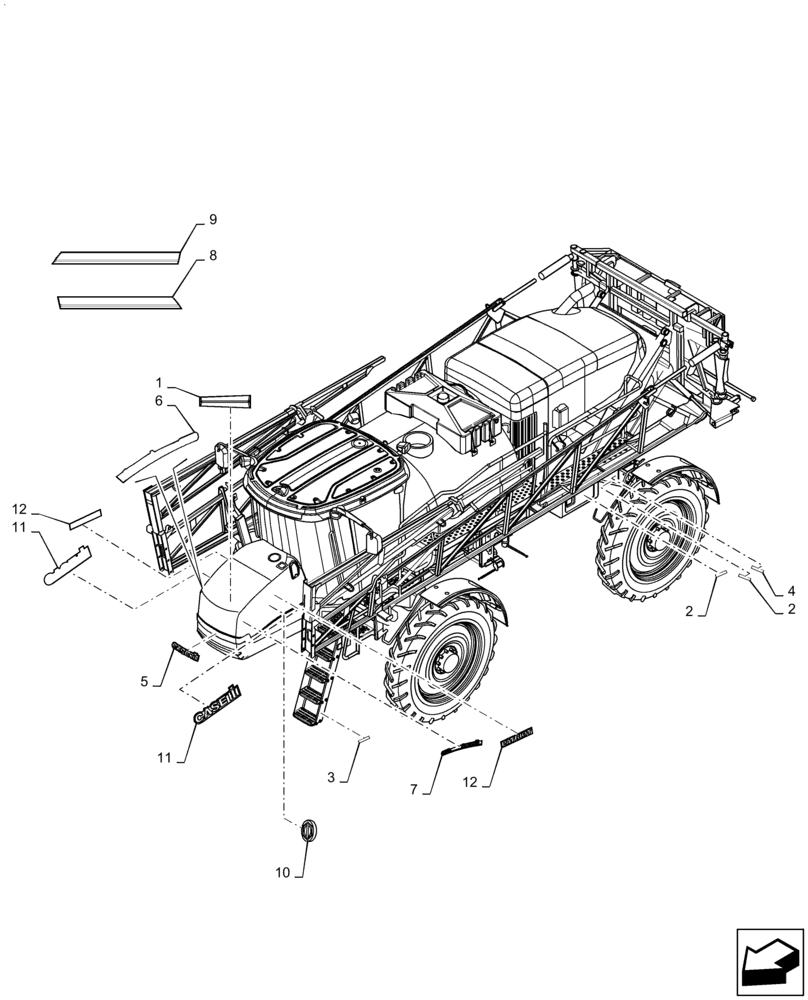

Схема запчастей Case IH PATRIOT 3240 - (90.108.AB[01]) - DECALS, APPEARANCE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
8
4
12
9
11
2
11
12
2
6
5
10
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1968108C2

TRIM

Sight Hood

1шт.

2

311863A1

REFLECTOR

Retroreflective Red

4шт.

3

311864A1

REFLECTOR

Retroreflective Amber

2шт.

4

311865A1

REFLECTOR

Fluorescent Orange

2шт.

5

87716230

EMBLEM

Case IH

1шт.

6

47463730

DECAL

RH, 3240, Front

1шт.

7

47463731

DECAL

LH, 3240, Front

1шт.

8

47379073

DECAL

LH, Rear

1шт.

9

47379072

DECAL

RH, Rear

1шт.

10

86625060

PUSH-ON NUT,Self, Threading, 1/4"

Push - On

2шт.

11

87558404

DECAL

Case IH Rear

2шт.

12

47459680

DECAL

Patriot

2шт.
