(90.105.CB[01]) - FRONT HOOD

Запчасти Case IH PATRIOT 3240 (90.105.CB[01]) - FRONT HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

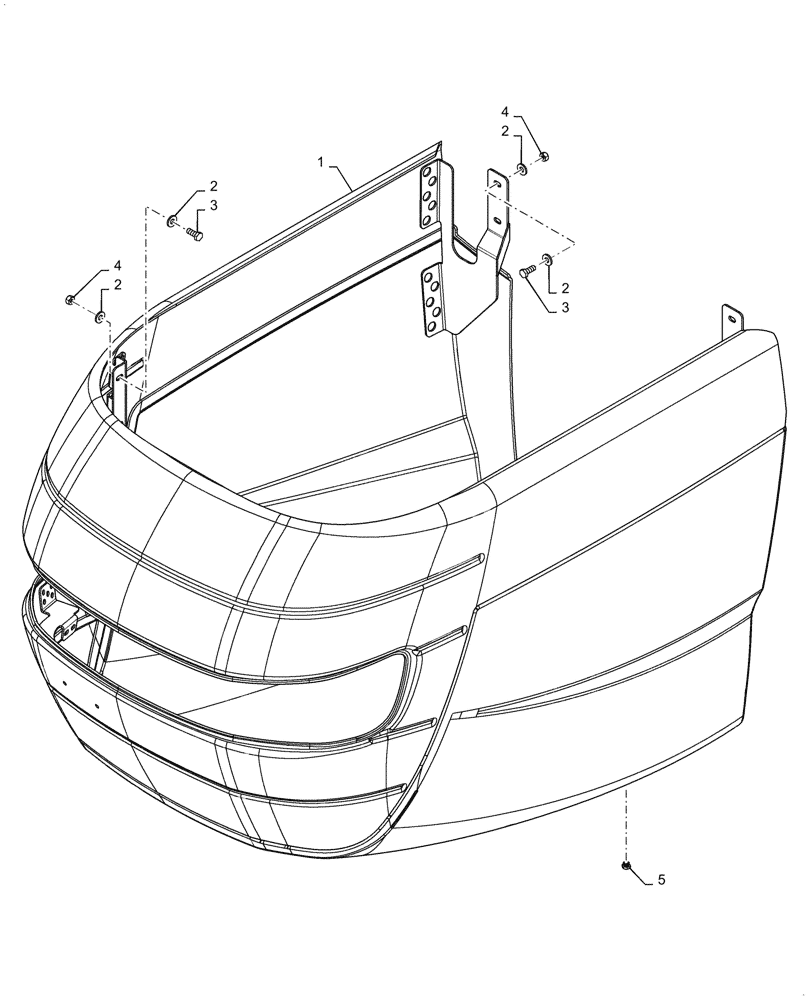

Схема запчастей Case IH PATRIOT 3240 - (90.105.CB[01]) - FRONT HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
2
4
5
2
4
1
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47361263

HOOD

Front, Shown From Bottom

1шт.

2

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.

5

47858521

PLUG

Plastic, Hole

1шт.
