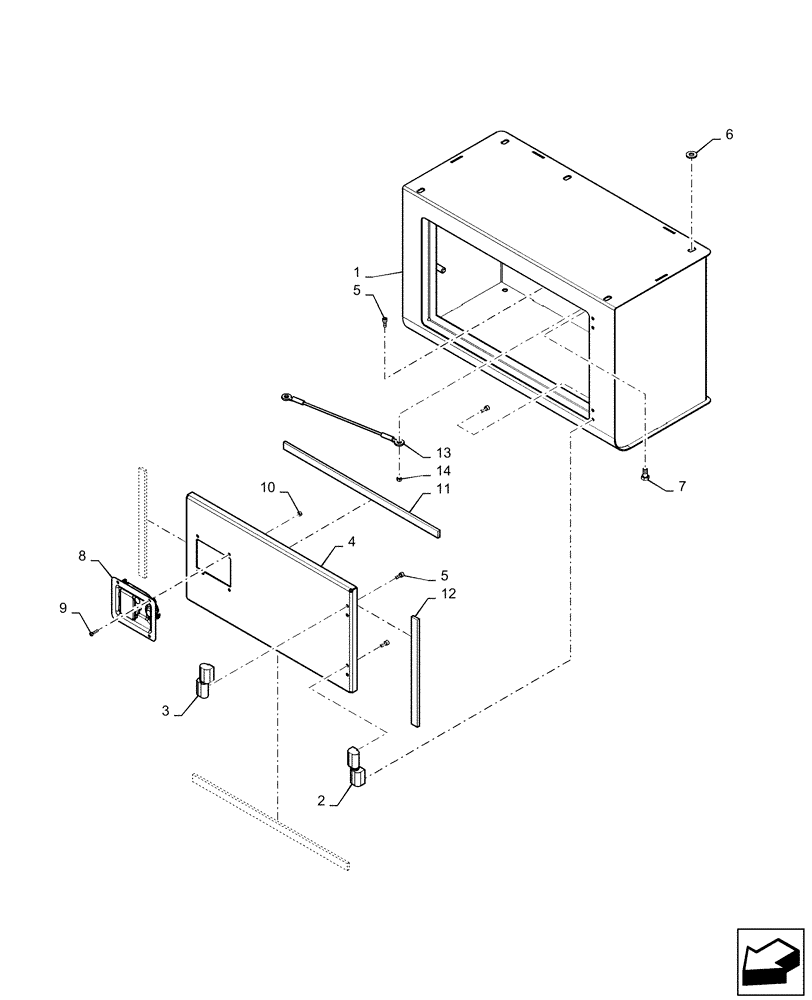

Запчасти Case IH PATRIOT 3240 (88.100.AH[01]) - TOOL BOX (88) - ACCESSORIES

1

87741533

BOX

Storage

1шт.

2

BN306286

HINGE

Nylon

1шт.

3

BN306290

HINGE

Nylon

1шт.

4

87555040

DOOR

Storage Box

1шт.

5

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

10шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

5шт.

7

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

5шт.

8

BN323944

LATCH

Paddle Handle

1шт.

9

BN311631

BOLT,#10 - 24 x 3/4", SST

10 - 24 x 3/4", SST

4шт.

10

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

11

BN323949

SEALING STRIP

3/4" Weatherstrip

2шт.

12

87268931

SEAL

3/4" Weatherstrip

2шт.

13

F64526

CABLE

Assy, Door

1шт.

14

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.
