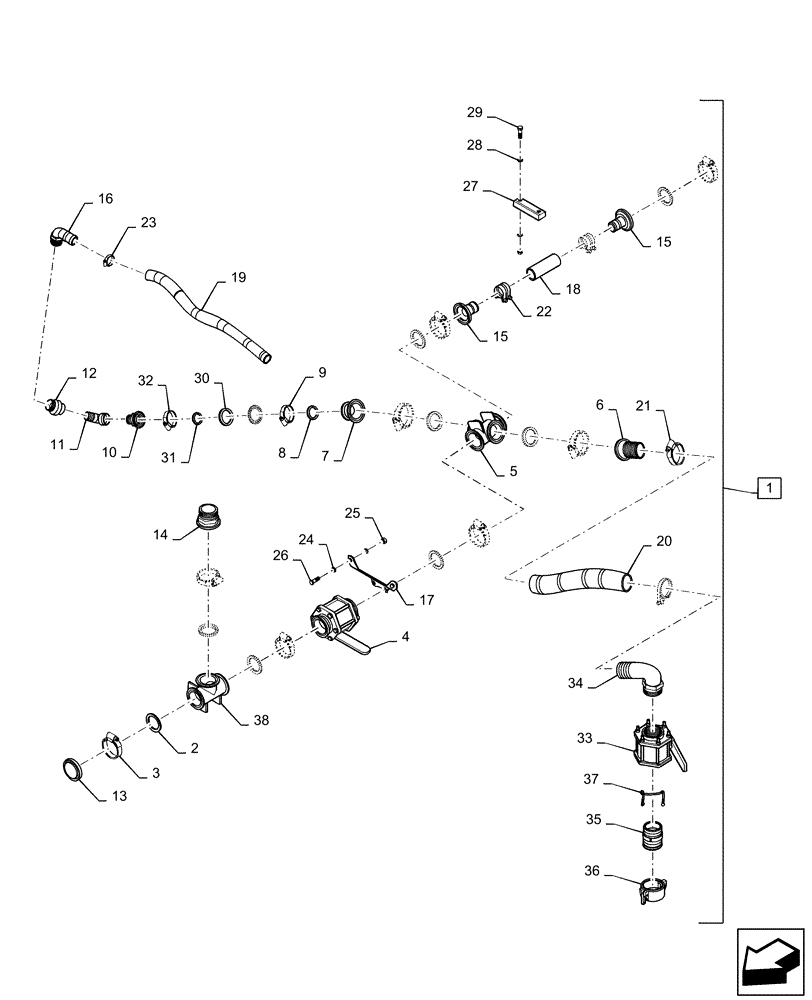

Запчасти Case IH PATRIOT 3240 (88.100.78[01]) - 2" TO 3" FILL CONVERSION KIT (88) - ACCESSORIES

1

84225663

KIT

2" To 3" Fill Conversion, Incl 2 Through 38

1шт.

2

BN321073

GASKET,3" Flange, EPDM

3" FLB

8шт.

3

BN321074

CLAMP,101.6mm

3" FLB

8шт.

4

BN321070

VALVE,3" Flange

Ball, 3" FLB

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

2" FLB x 1 -1/4" MPT

1шт.

11

BN324890

ELBOW

1 -1/4" MPT x 1 -1/4" FPT

1шт.

12

84347992

CHECK VALVE

1 -1/4" NPT

1шт.

13

BN321079

PLUG,3" Flange

Manifold 3"

1шт.

14

BN321078

ADAPTER

Straight, 3" FLB x 3" MPT

1шт.

15

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

Straight, 3" FLB x 2" HB

2шт.

16

87265957

FITTING,1-1/4"Male Thread x 1-1/2" 90 Degree Hose Barb

90 Degree, 1 -1/4" MPT x 1 -1/2" HB

1шт.

17

84188916

SUPPORT

Valve

1шт.

18

BN29564

HOSE

2" Bulk EPDM Suction, Cut To Length Required

1шт.

19

84403831

FLEXIBLE HOSE

1 -1/2" Bulk, Cut To Length Required

1шт.

20

BN326025

HOSE,3.00" ID BULK

Cut To Length Required

1шт.

21

BN2403395

CLAMP

T Bolt For 1-1/2" EPDM

2шт.

22

BN2403358

CLAMP,50.8mm - 63.5mm

T Bolt For 2 -1/4" / 2 -1/2"

4шт.

23

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

24

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

84223386

SPACER

Pump

1шт.

28

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

30

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2.2 FL x 2.0 FL

1шт.

31

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange

1шт.

32

BN303199

CLAMP,2" Flange

2", STD FLG

1шт.

33

BN313506

VALVE,3" Standard Port Valve

3" Full Port

1шт.

34

BN307945

FITTING

90 Degree, 3" MP x 3" HB

1шт.

35

BN2393306

COUPLING

3" CAM, x 3" MP

1шт.

36

BN2393384

CAP

3" CAM

1шт.

37

BN321087

STRAP

Lanyard, 11"

1шт.

38

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold 3"

1шт.
