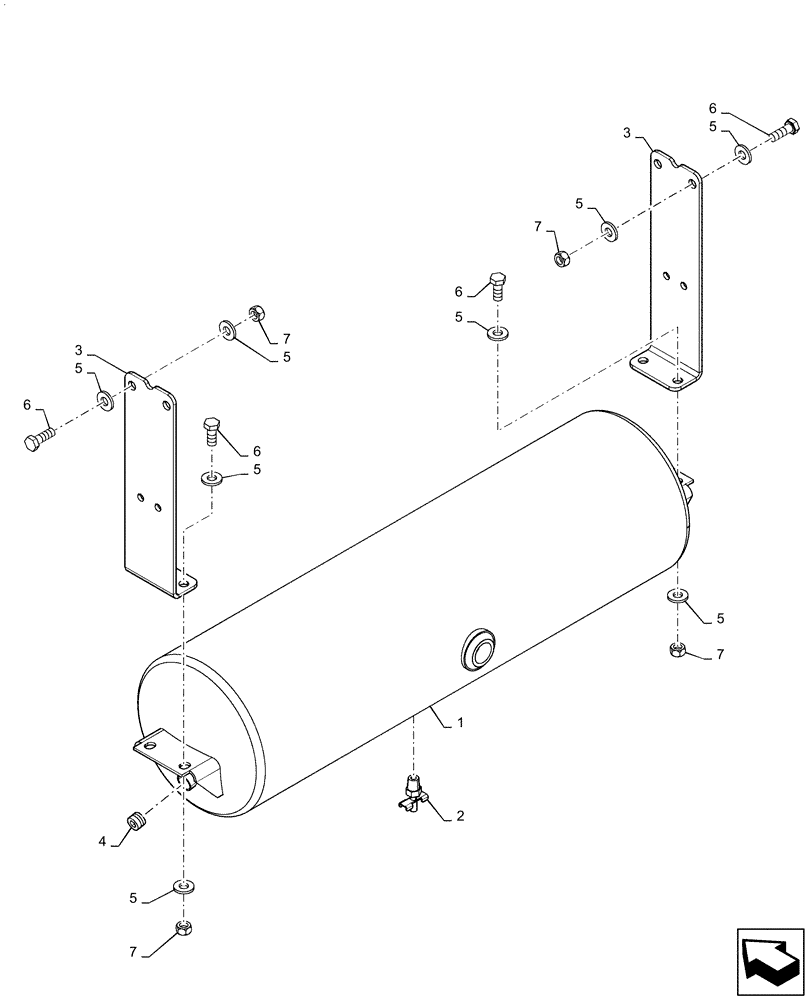

Запчасти Case IH PATRIOT 3240 (78.120.AC[01]) - AIR TANK (78) - SPRAYING

1

BN316553

AIR TANK

8" x 32"

1шт.

2

217-92

COCK

Drain

1шт.

3

47679783

MOUNT

Air Tank

2шт.

4

BN92391

PLUG

Pipe, 3/8" Socket Head

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

6

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

8шт.
