(78.111.AA[01]) - MOUNT, PRODUCT PUMP

Запчасти Case IH PATRIOT 3240 (78.111.AA[01]) - MOUNT, PRODUCT PUMP (78) - SPRAYING

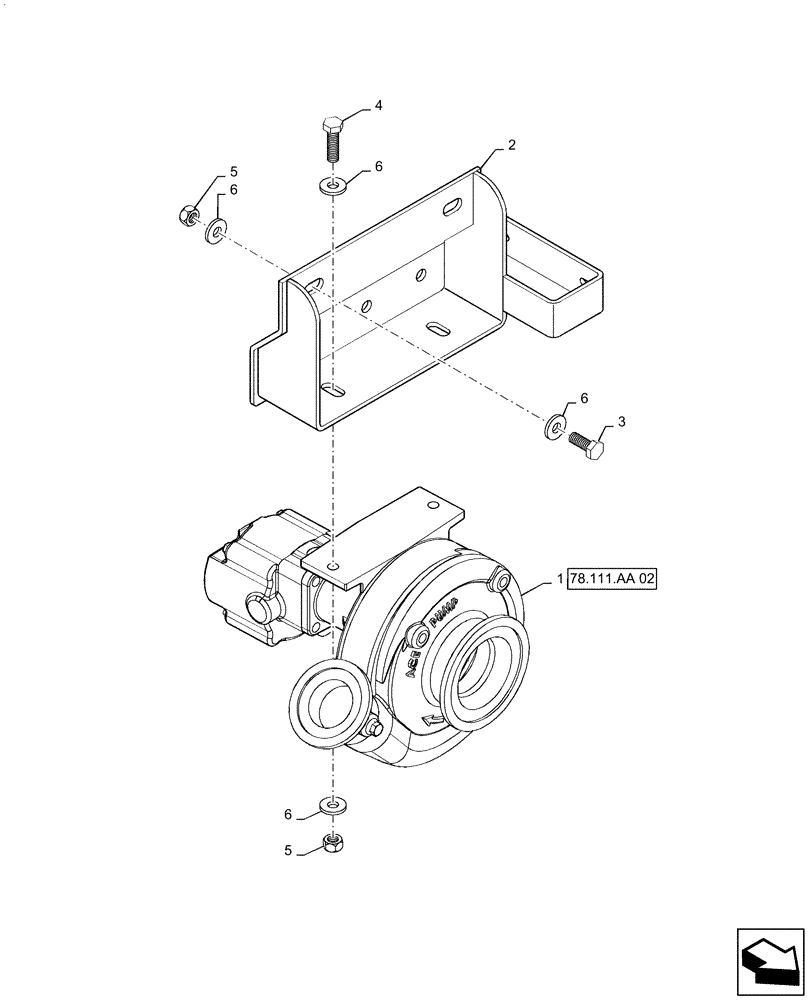

Схема запчастей Case IH PATRIOT 3240 - (78.111.AA[01]) - MOUNT, PRODUCT PUMP (78) - SPRAYING
6
6
5
78.111.aa 02
3
6
5
1
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84319987

PUMP,11.49 CC

Complete, See 78.111.AA 02 For Service Parts

1шт.

1

84319987R

REMAN-WATER PUMP

Product, Complete

1шт.

1

84319987C

CORE-WATER PUMP

Return Number

1шт.

2

87270086

MOUNTING PLATE

Pump

1шт.

3

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

4

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

5

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.
