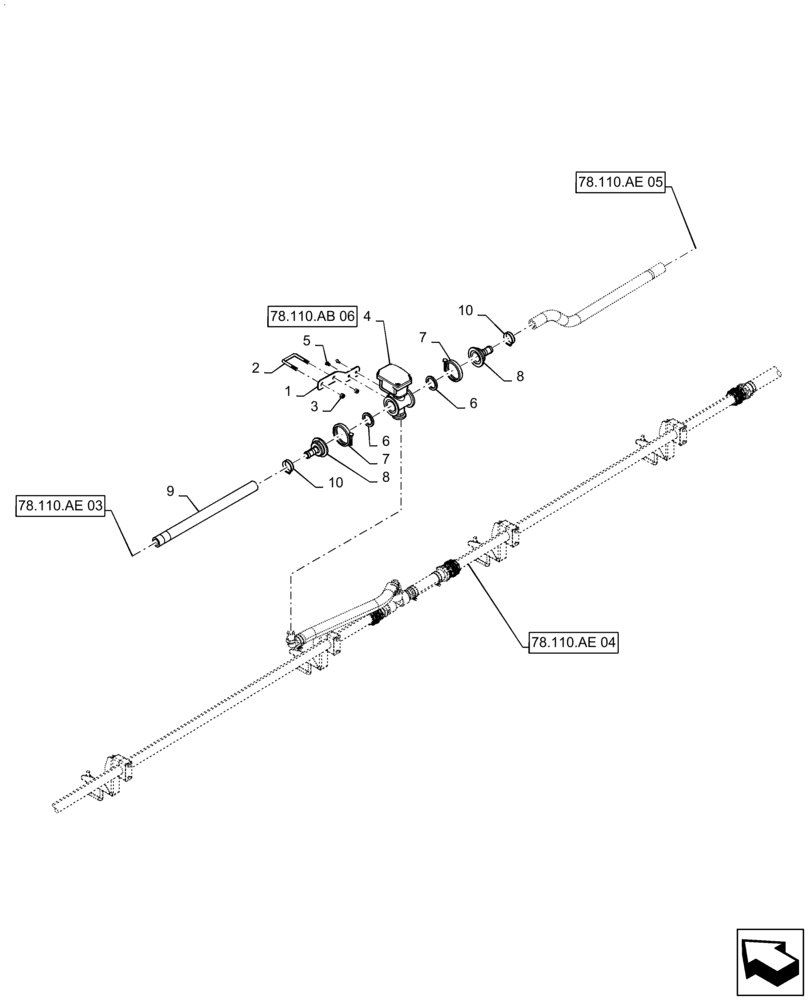

Запчасти Case IH PATRIOT 3240 (78.110.AL[04]) - 90 AND 100, RH INNER PLUMBING (78) - SPRAYING

1

87265462

MOUNTING PARTS

Boom Valve

1шт.

2

BN319919

U-BOLT

Square

1шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

4

87632830

SHUT-OFF VALVE

Electric Plunger, 2" Flange x 1" Flange

1шт.

See Figure 78.110.AB 06

1шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

7

BN303199

CLAMP,2" Flange

2" STD FLG

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb

7шт.

9

BN53479

HOSE,1.00" ID BULK

1шт.

10

BN320156

HOSE CLAMP

#24, SST

7шт.
