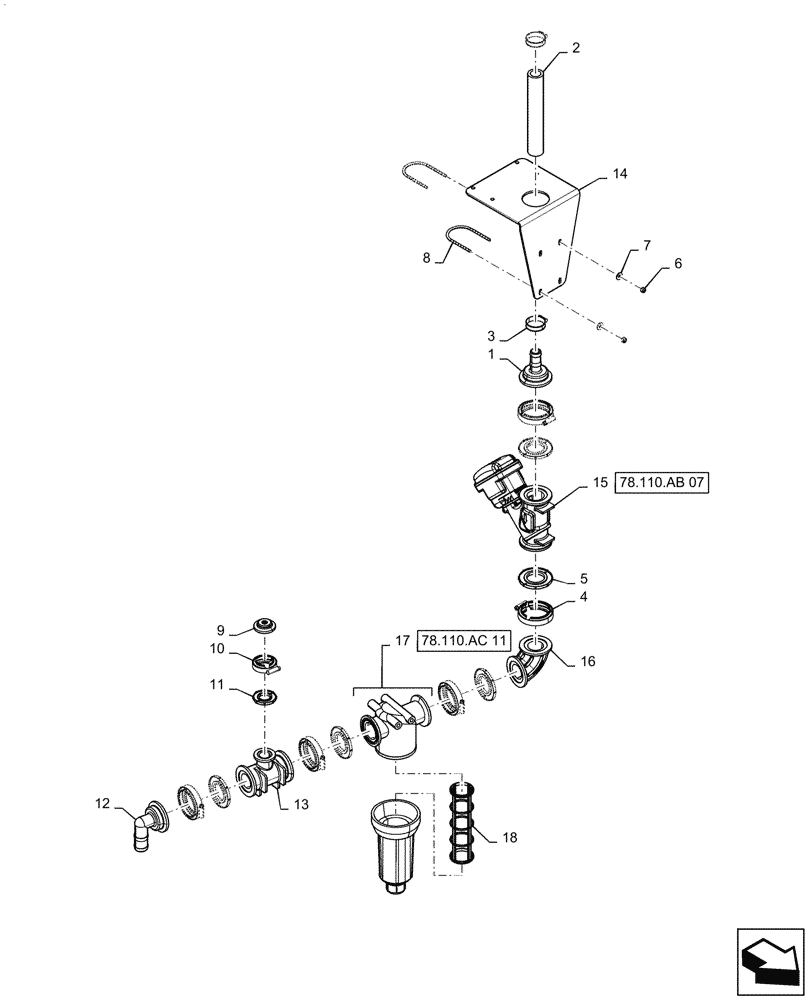

Запчасти Case IH PATRIOT 3240 (78.110.AL[03.1]) - 90, 5 SECTION, CENTER PLUMBING, ASN YGT044000 (78) - SPRAYING

1

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

1шт.

2

BN53479

HOSE,1.00" ID BULK

30' Roll

1шт.

3

BN320156

HOSE CLAMP

# 24 SST

2шт.

4

BN303199

CLAMP,2" Flange

5шт.

5

47888705

GASKET

2" Flange

5шт.

6

BN55359

LOCK NUT,1/4"-20, SS

4шт.

7

BN50138

WASHER,1/4", SS

4шт.

8

BN303201

U-BOLT

1/4" x 2.38" x 3-3/4"

2шт.

9

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

10

BN303203

CLAMP,1" Flange

1шт.

11

47888704

GASKET,28mm ID x 52mm OD x 5.6mm Thk

1шт.

12

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

1шт.

13

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

14

84224923

MOUNT

CS, Valve

1шт.

15

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports, Complete

1шт.

16

47776943

FITTING,2" Full Port Flange x Flange Sweep

1шт.

17

87265489

FILTER STRAINER

2", Less Screen

1шт.

18

87265492

SCREEN,80 Mesh, SST, Blue

1шт.
