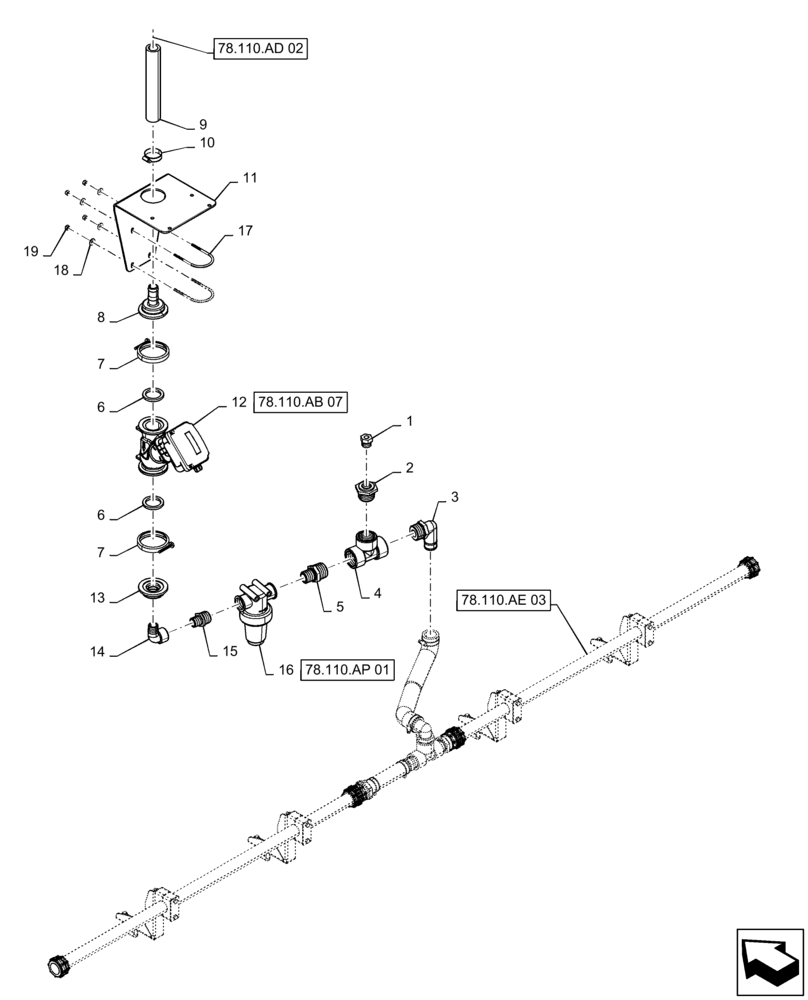

Запчасти Case IH PATRIOT 3240 (78.110.AL[03]) - 90, 5 SECTION, CENTER PLUMBING, BSN YGT044001 (78) - SPRAYING

1

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT

1шт.

2

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" x 3/4"

1шт.

3

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" MPT x 1-1/4" Hose Barb

1шт.

4

BN73662

TEE

1-1/4"

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" x 1"

1шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

7

BN303199

CLAMP,2" Flange

2" Flange

2шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb

1шт.

9

BN53479

HOSE,1.00" ID BULK

1шт.

10

BN320156

HOSE CLAMP

#24, SST

1шт.

11

84224923

MOUNT

CS, Valve

1шт.

12

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports, Complete

1шт.

See 78.110.AB 07

1шт.

13

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT

1шт.

14

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

Street, 3/4" MPT x 3/4" FPT

1шт.

15

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

Reducer, 1" x 3/4"

1шт.

16

BN320072

FILTER STRAINER

Complete, 1" NPT, 50 Mesh

1шт.

See 78.110.AP 01

1шт.

17

BN303201

U-BOLT

1/4" x 2.38" x 3-3/4"

2шт.

18

BN50138

WASHER,1/4", SS

4шт.

19

BN55359

LOCK NUT,1/4"-20, SS

4шт.
