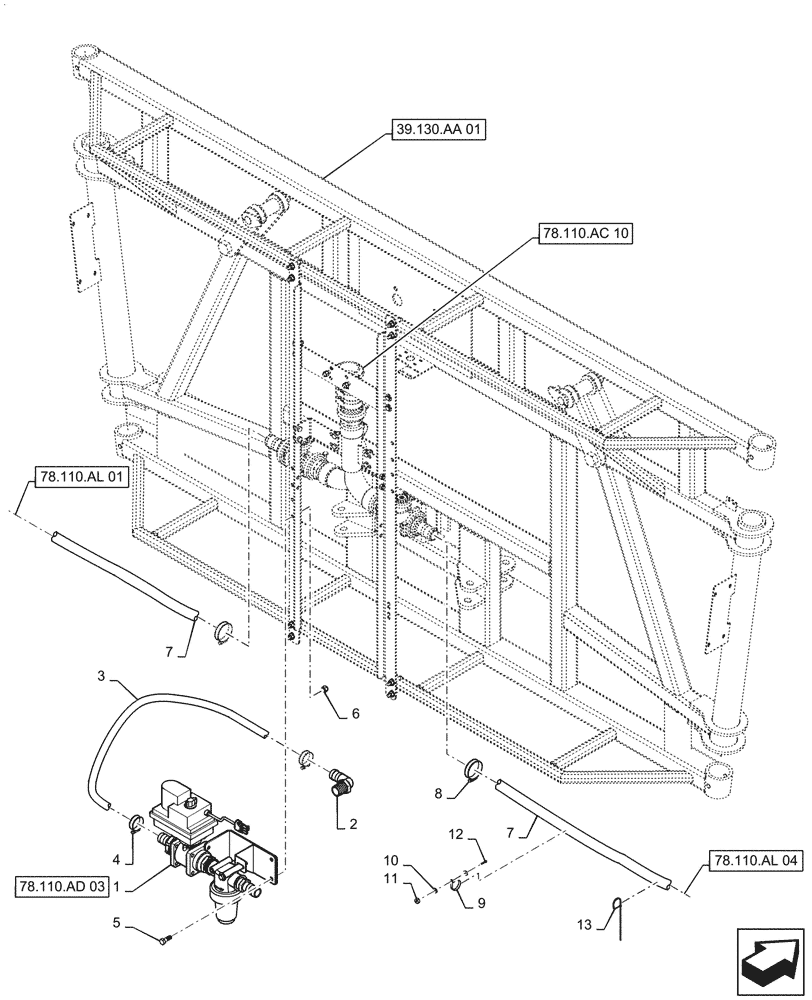

Запчасти Case IH PATRIOT 3240 (78.110.AL[03]) - 90, 5 SECTION, CENTER BOOM PLUMBING (78) - SPRAYING

1

BN325195

VALVE

Center Section Valve Group, 5 Section, Complete

1шт.

See 78.110.AD 03 For Service

1шт.

2

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1шт.

3

BN69394

HOSE

EPDM x 44", Runs From Center Secton Manifold To Center Section Valve

1шт.

4

BN75990

HOSE CLAMP

#16, SST

2шт.

5

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

7

342076A1

HOSE

BULK, 1 - 1/2" x 147" EPDM, Runs From Center Section Manifold To Inner Boom Plumbing

2шт.

8

BN310448

HOSE CLAMP

#28, SST

4шт.

9

87021161

CLAMP,76.2mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

2шт.

13

BN570007

STRAP

14" Zip Tie

4шт.
