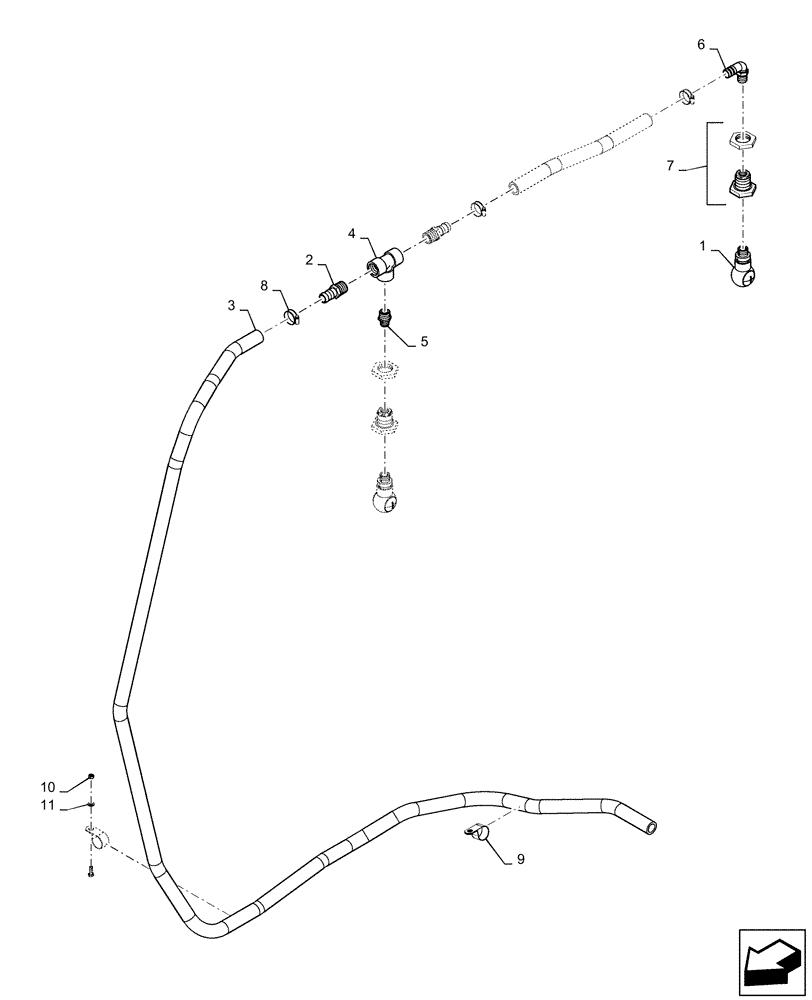

Запчасти Case IH PATRIOT 3240 (78.110.AH[04]) - RINSE TANK PLUMBING (78) - SPRAYING

1

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1 - 1/2" MPT x 1 - 1/4" HB

2шт.

2

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

Straight, 1" MPT x 1" HB

2шт.

3

BN54256

HOSE

Bulk, Cut To Length Required

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1 - 1/2" MPT x 1 - 1/2" HB

1шт.

5

BN53842

HOSE,38.10 mm ID Bulk

Cut To Length Required

1шт.

6

BN317579

TEE

1 - 1/4" HB

1шт.

7

BN29563

HOSE

Bulk, Cut To Length Required

1шт.

8

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

3шт.

9

BN570018

CLAMP

1 - 7/16", Vinyl Coated

1шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

5шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

BN310448

HOSE CLAMP

#28, SST

9шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

15

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" MPT x 3/4" HB

2шт.

16

BN310446

HOSE CLAMP

#12, SST

2шт.

17

BN52310

TUBE,0.75" ID

Bulk, Cut To Length Required

1шт.
