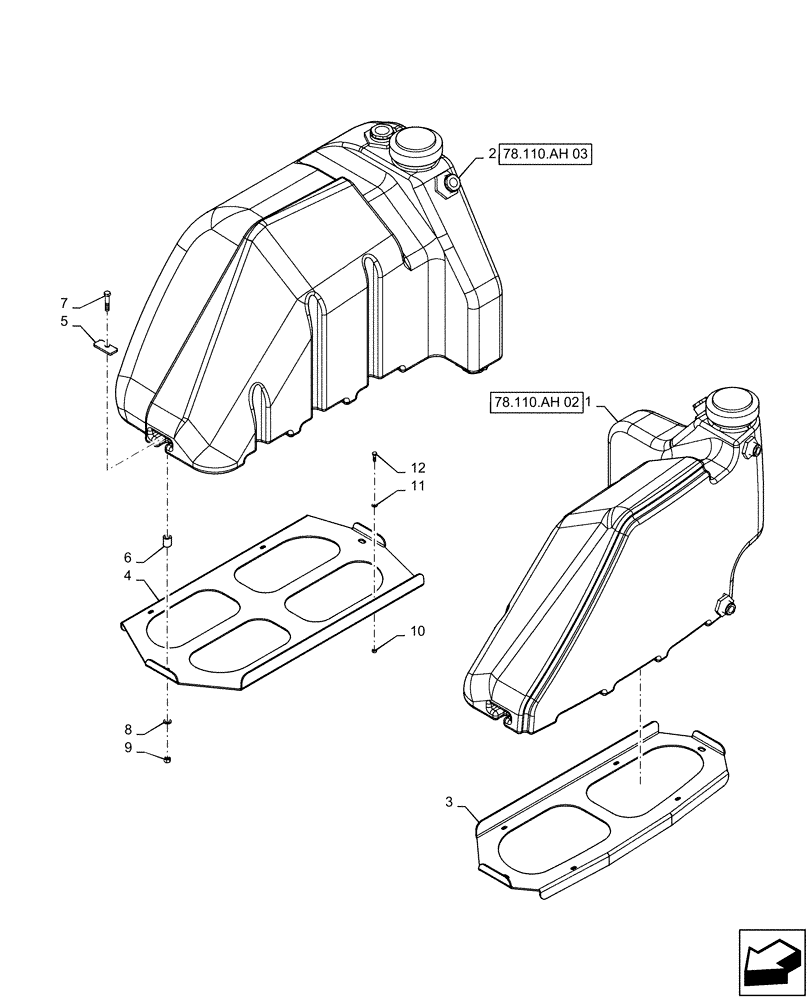

Запчасти Case IH PATRIOT 3240 (78.110.AH[01]) - RINSE TANKS (78) - SPRAYING

1

84535867

TANK

Rinse, LH, With Fittings

1шт.

See 78.110.AH 02 For Service Parts

1шт.

2

87270432

TANK

Rinse, RH, With Fittings

1шт.

See 78.110.AH 03 For Service Parts

1шт.

3

87270428

MOUNTING PLATE

Rinse Tank, LH

1шт.

4

87270430

MOUNTING PLATE

Rinse Tank, RH

1шт.

7

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

5

BN67652

PLATE

Tank Hold Down

4шт.

6

BN67653

BUSHING

Spacer

4шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

9

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

10

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

8шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.
