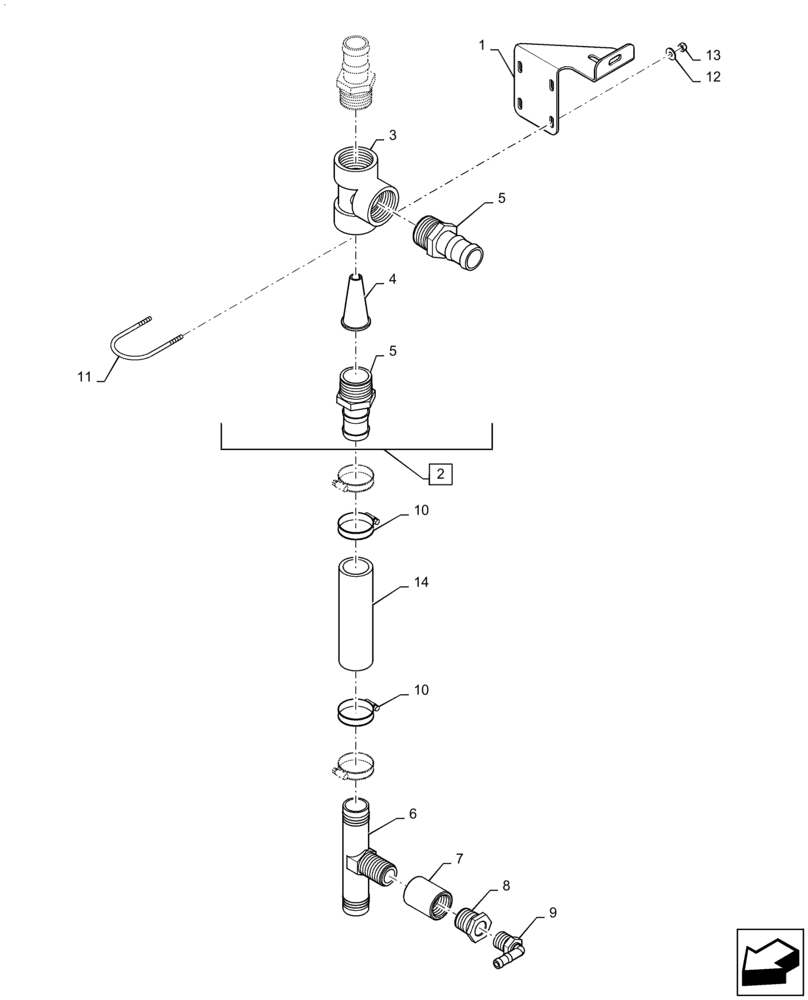

Запчасти Case IH PATRIOT 3240 (78.110.AG[05]) - CHEMICAL INDUCTOR TEE ASSY (78) - SPRAYING

1

BN320728

BRACKET

Inductor Tee

1шт.

2

87270968

VENTURI

Assembly, Incl 3 - 5

1шт.

3

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1 - 1/2" NPT, Poly

1шт.

4

21384

VENTURI

1 - 1/2"

1шт.

5

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1 - 1/2" NPT x 1 - 1/2" Hose Barb, Poly

3шт.

6

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1 - 1/2" Hose Barb x 1 - 1/2" Hose Barb x 1" MPT, Poly

1шт.

7

BN66968

COUPLING

1" Poly

1шт.

8

BN53665

BUSHING

1" NPT x 3/4" NPT, Poly

1шт.

9

BN73578

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

11

BN303201

U-BOLT

1/4" x 2.38" x 3.75"

2шт.

12

BN50138

WASHER,1/4", SS

4шт.

13

BN55359

LOCK NUT,1/4"-20, SS

4шт.

14

BN324833

HOSE

Kanaflex

1шт.
