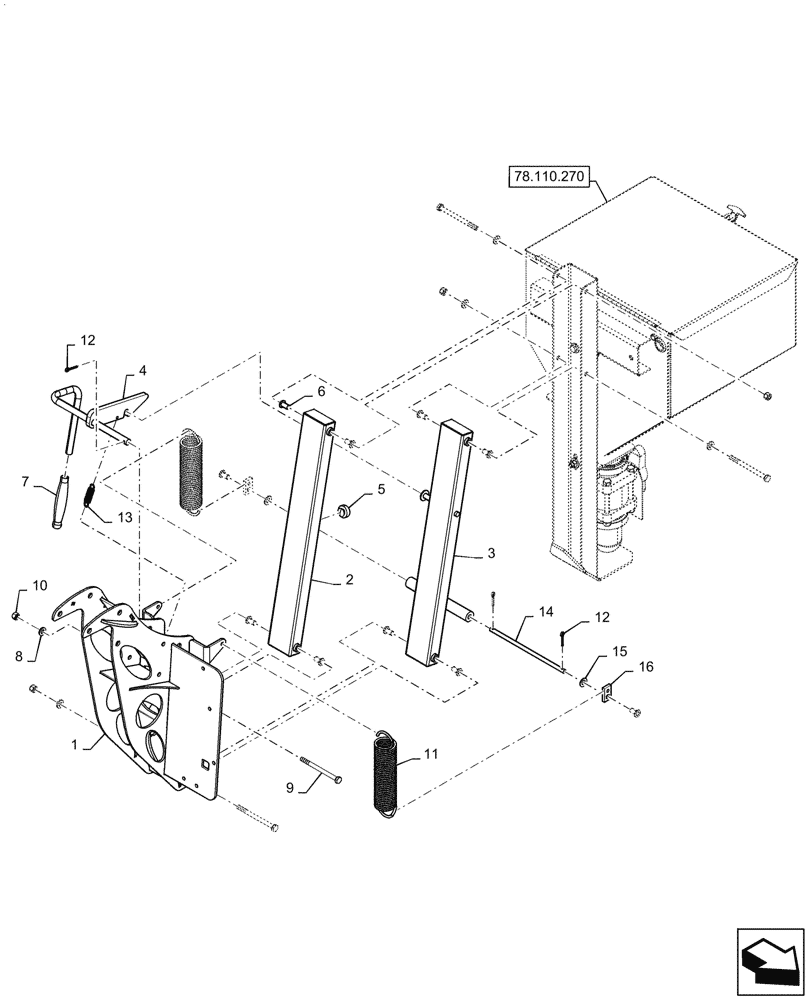

Запчасти Case IH PATRIOT 3240 (78.110.AG[02]) - CHEMICAL INDUCTOR LINKAGE (78) - SPRAYING

1

47999893

MOUNT

Chemical Inductor

1шт.

2

47820332

ARM

Linkage, Rear

1шт.

3

47820335

ARM

Linkage, Front

1шт.

4

BN318200

LATCH

Inductor

1шт.

5

BN319152

RUBBER BUMPER

1" OD

1шт.

6

BN319151

BUSHING

5/16", Nylon

10шт.

7

BN29274

GRIP

Vinyl

1шт.

8

87529232

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

6шт.

9

87342752

BOLT

5/16" x 18, DOR

4шт.

10

87343959

NUT,5/16" - 18, GR B, DOR

4шт.

11

84588820

TENSION SPRING

Extension

2шт.

12

BN1630425

PIN, SPLIT (COTTER)

1/8" x 1"

3шт.

13

BN311889

SPRING

1/2" SST

1шт.

14

BN319247

PIN,7.94mm OD x 210mm L

Spring Retension

1шт.

15

BN319150

WASHER

3/8" Nylon

2шт.

16

BN319106

ADJUSTING PLATE

Spring Tension Adjustment

2шт.
