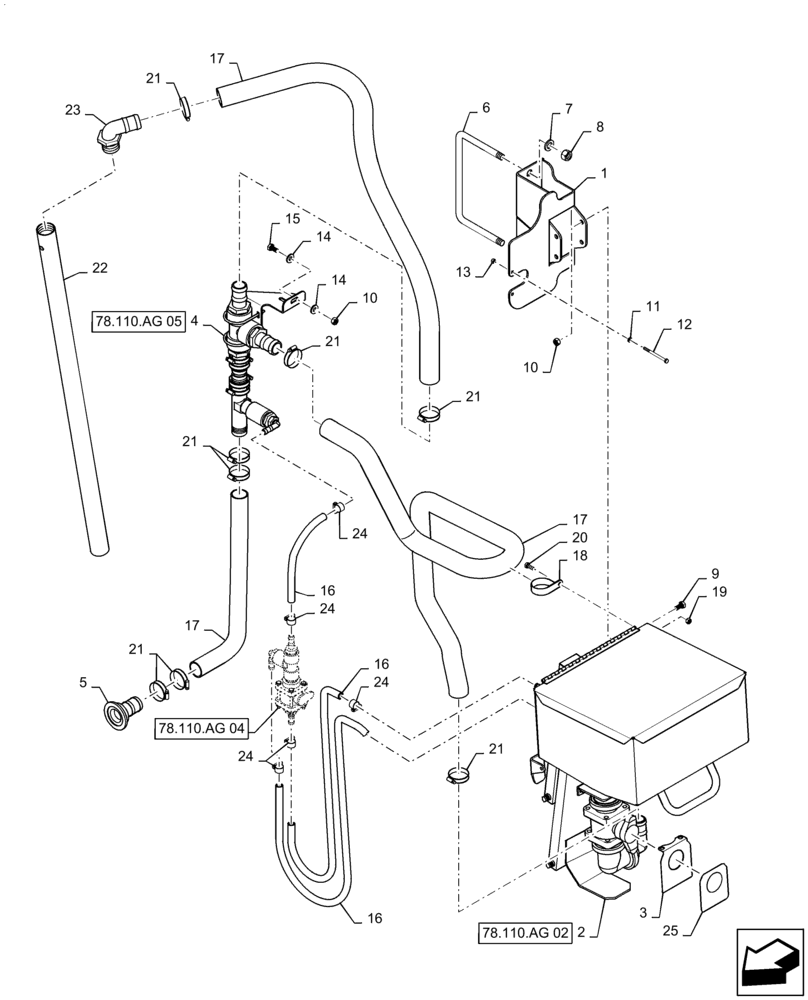

Запчасти Case IH PATRIOT 3240 (78.110.AG[01]) - CHEMICAL INDUCTOR (78) - SPRAYING

1

87271073

MOUNTING PLATE

Eductor

1шт.

2

BN324763

TANK

Chemical Inductor Tank, With Linkage

1шт.

See 78.110.AG 02

1шт.

3

BN320997

BRACKET

Decal Mount, SST

1шт.

4

BN324807

SERVICE KIT

Tee

1шт.

See 78.110.AG 05

1шт.

5

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

1шт.

6

BN325918

U-BOLT

187 x 256

1шт.

7

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.

9

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

11

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

2шт.

12

86980369

BOLT,Hex, M6 x 80, Cl 8.8

2шт.

13

353308

NUT,M6 x 1.0, Cl 8

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

15

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

16

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

1шт.

17

BN309785

HOSE

1 - 1/2", Bulk

13.5шт.

18

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

19

9991588

NUT,M8 x 1.25, Cl 8

1шт.

20

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

21

BN310448

HOSE CLAMP

#28, SST

8шт.

22

84226982

PLASTIC-RUBBER TUBE,38 mm ID x 48 mm OD x 1300 mm L

1шт.

23

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

24

87487826

CLAMP,0.44" - 0.78"

Hose, SST

6шт.

25

343187A1

DECAL

Chemical Inductor, English

1шт.

25

84212153

DECAL

Chemical Inductor, Chinese

1шт.

25

84165770

DECAL

Chemical Inductor, Russian

1шт.

25

87746125

IMPORTANT DECAL

Chemical Inductor, Turkish

1шт.
