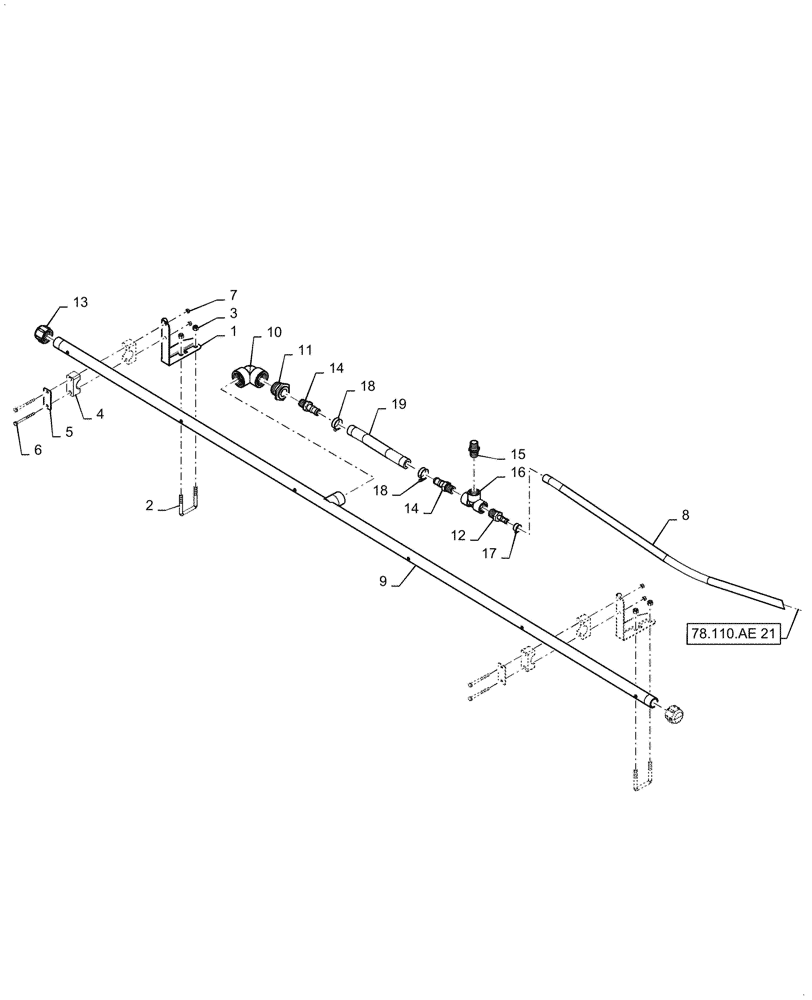

Запчасти Case IH PATRIOT 3240 (78.110.AE[20]) - SPRAYBAR, 100, 6 SECTION, LO FLOW, 20" SPACING, LH INNER (78) - SPRAYING

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

BN67054

CLAMP

1.315" OD

2шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

2шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN54239

HOSE,12.7mm ID x 3048mm L

1/2" Bulk EPDM, 10' Long

1шт.

9

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, Poly

1шт.

10

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

11

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1шт.

12

BN73568

FITTING

3/4" NPT x 1/2" Hose Barb, Poly

1шт.

13

BN73606

CAP

1" NPT, Poly Pipe

2шт.

14

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

15

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

1шт.

16

BN73560

TEE

3/4" NPT, Poly

1шт.

17

BN324022

HOSE CLAMP

#8, Stainless Steel

1шт.

18

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

19

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" Bulk EPDM

1шт.
