1
47965536
MOUNT
SCR
1шт.
2
86980380
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
16шт.
3
87529316
WASHER,9mm ID x 21mm OD x 2.5mm Thk
29шт.
4
86980514
LOCK NUT,Hex, M8, Cl 8, DOR
14шт.
5
47516577
EXHAUST SYSTEM PIPE
Turbo To DOC
1шт.
6
47532647
MUFFLER
DOC
1шт.
7
47537803
INJECTOR, EMISSIONS
Denox
1шт.
7
47537803R
REMAN-INJEC EMISSION
Denox
1шт.
7
47537803C
CORE-INJEC EMISSION
Return Number
1шт.
8
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
3шт.
9
14432221
HEX SOC SCREW,M6 x 1.0 x 28mm, Cl 8.8
3шт.
10
84568102
MOUNT
DOC
1шт.
11
84602091
STRAP
Securing, DOC
2шт.
12
87529310
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13.5 x 28 DOR
8шт.
13
BN300407
FLANGE NUT
1/2 - 13
8шт.
14
84568366
MOUNT
SCR
1шт.
15
87529312
WASHER,11mm ID x 24mm OD x 3mm Thk
8шт.
16
86980401
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
4шт.
17
86980515
NUT,Hex, M10 x 1.5, Cl 8.8, DOR
4шт.
18
47515805
MUFFLER
SCR
1шт.
19
47519663
EXHAUST SYSTEM PIPE
Stack
1шт.
20
A173381
CLAMP,117.7mm ID
Engine Exhaust
1шт.
21
84602692
STRAP
Securing, SCR
2шт.
22
84553515
EXHAUST SYSTEM PIPE
DOC To SCR
1шт.
23
84422747
SENSOR,NOx, 12V, 5 Pin, 615mm L
NOX
2шт.
24
86980360
BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd
6шт.
25
87529302
WASHER,6.6mm ID x 18mm OD x 1.6mm Thk
6шт.
26
86980513
NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR
6шт.
27
84568101
MOUNT
Sensor
1шт.
28
86980379
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
6шт.
29
47368959
ECU
NH3
1шт.
30
47478880
TEMPERATURE SENDER,50mm, Closed
Temperature
3шт.
31
47520140
SENSOR,8 Pin
NH3
1шт.
32
47368248
GASKET,1.3mm Thk
Exhaust, 4.5
3шт.
33
47368239
CLAMP
Marmon, 4.5
3шт.
34
47423211
CLAMP,118mm - 124mm
Exhaust Flap
1шт.
35
BN570007
STRAP
14-1/2"
1шт.
36
47849471
SUPPORT
Exhaust Stack
2шт.
37
47637093
BRACKET
RH Engine Hood Support
1шт.
38
BN310002
BUMPER
1" x 1"
1шт.
39
BN55361
NUT,5/16"-18, Nylon, Stainless
1шт.

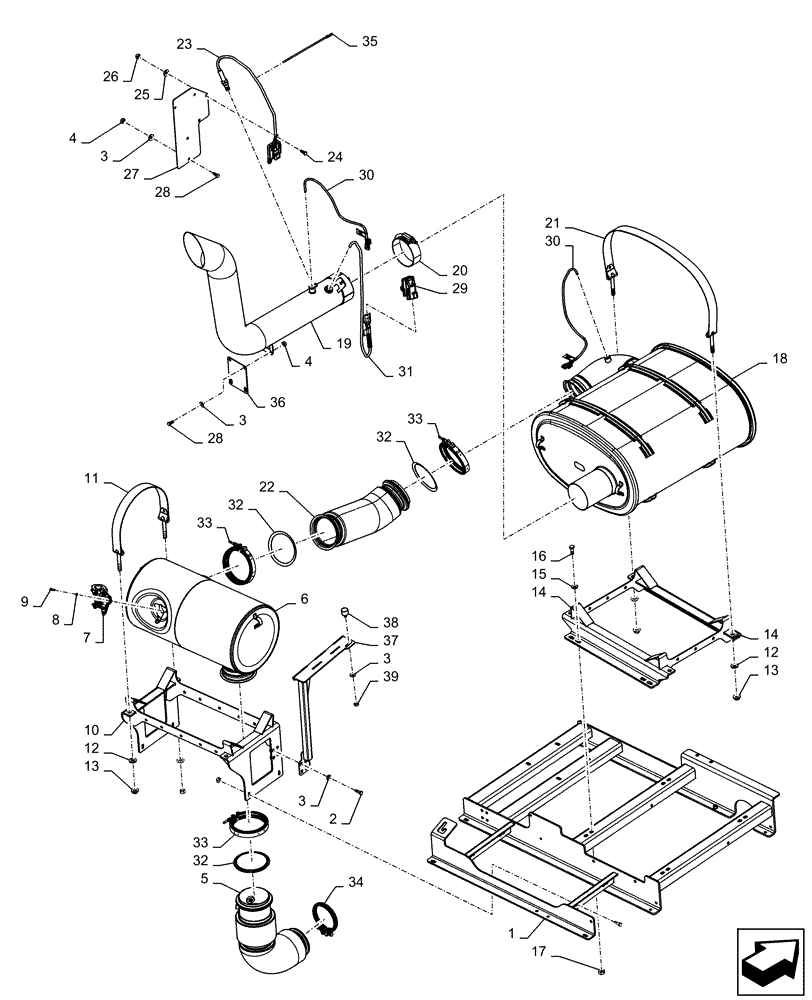

![Схема запчастей Case IH PATRIOT 3240 - (10.254.AD[01]) - EXHAUST SYSTEM W/ MUFFLER (10) - ENGINE](https://partsell.ru/storage/images/caseih/5238726.png)
