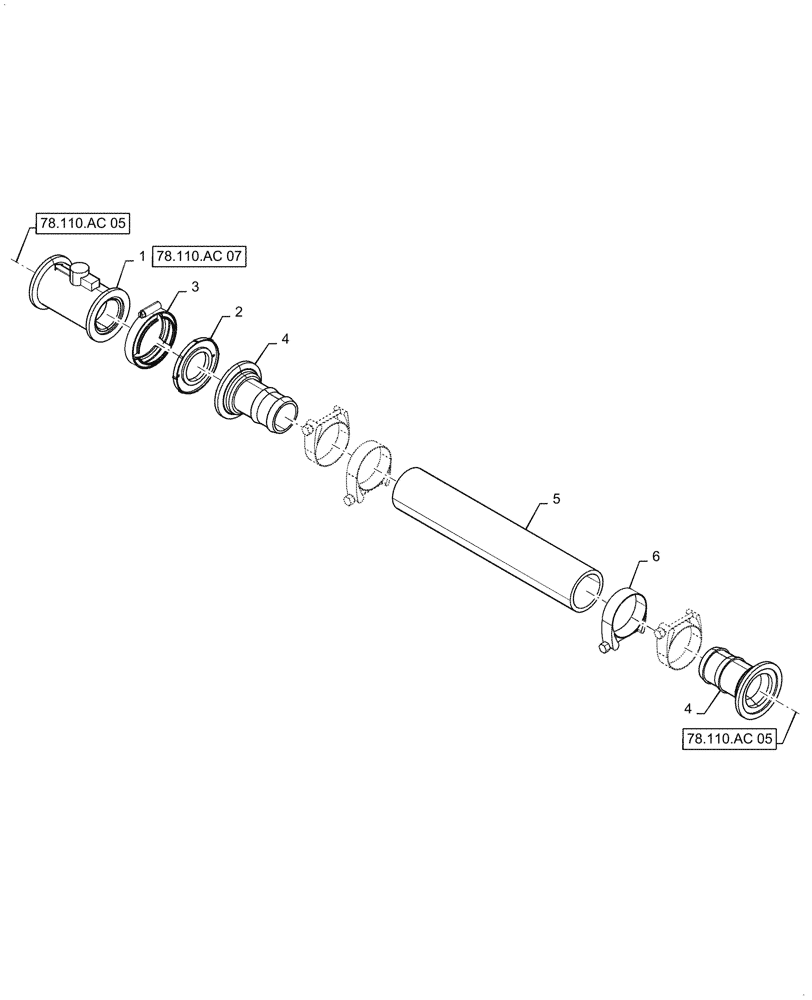

Запчасти Case IH PATRIOT 3240 (78.110.AC[09]) - LOW FLOW FLOWMETER PLUMBING ASN YGT042518 (78) - SPRAYING

1

87271267

MEASURING INSTRUMENT

Flowmeter, RFM60P H/P W/D

1шт.

See Fig 75.120.41 For Service

1шт.

2

47888705

GASKET

2" Flange, EPDM

1шт.

3

BN303199

CLAMP,2" Flange

1шт.

4

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

2шт.

5

BN29564

HOSE

2" Suction, Bulk, 100' Roll

1шт.

6

BN2403358

CLAMP,50.8mm - 63.5mm

T Bolt

4шт.
