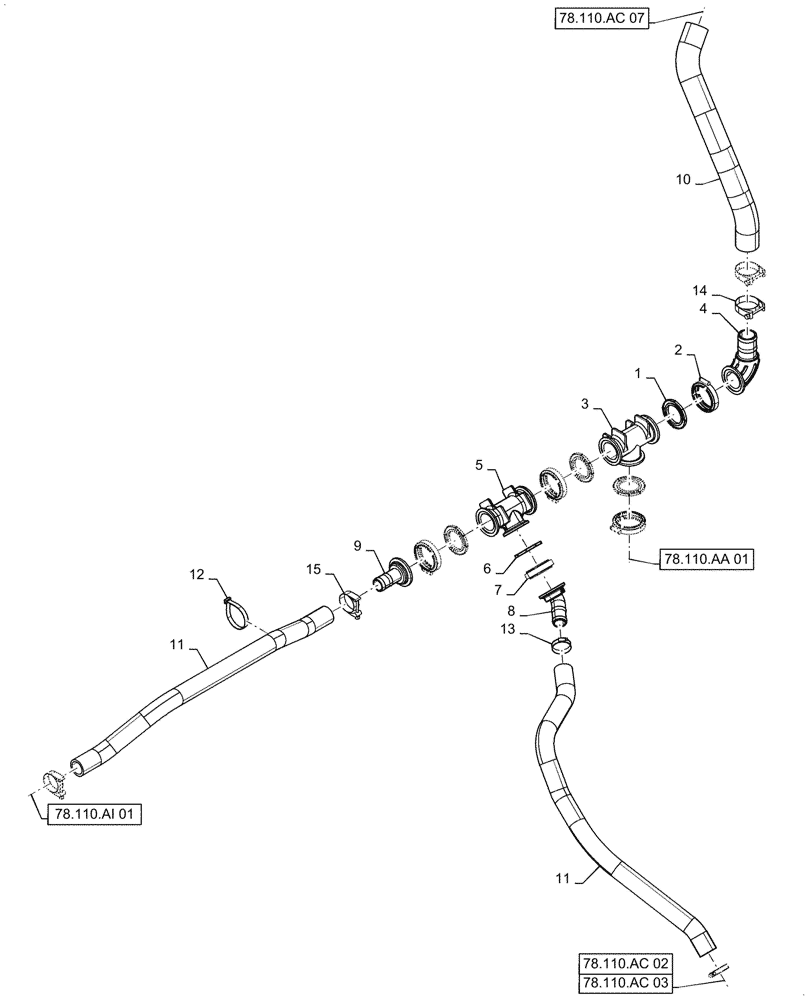

Запчасти Case IH PATRIOT 3240 (78.110.AC[06.2]) - PRODUCT PUMP PLUMBING, ASN YFT042000 (78) - SPRAYING

1

47888706

GASKET,56mm ID x 83mm OD 5mm Thk

2" Flange

4шт.

2

BN313773

CLAMP,2" Full Port

2" Flange

4шт.

3

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

1шт.

4

47846483

FITTING

90° 2" Flange x 2" Hose Barb

1шт.

5

47930545

TEE

2" Flange

1шт.

6

47888705

GASKET

2" Flange

1шт.

7

BN303199

CLAMP,2" Flange

1шт.

8

47690895

FITTING,2" Flange x 1-1/2" 45 Degree Hose Barb Elbow

45° 2" Flange x 1 1/2" Hose Barb

1шт.

9

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

1шт.

10

BN29564

HOSE

2" Bulk, 20' Roll

1шт.

11

BN53842

HOSE,38.10 mm ID Bulk

1 1/2" Bulk, EPDM, 30' Roll

1шт.

12

84360212

CABLE TIE,294.2mm L, Nylon

1шт.

13

BN310448

HOSE CLAMP

#28, SST

2шт.

14

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band, 2 1/4" - 2 1/2"

2шт.

15

BN53811

CLAMP

T-Bolt Band, 1 3/4" - 2 1/4"

2шт.
