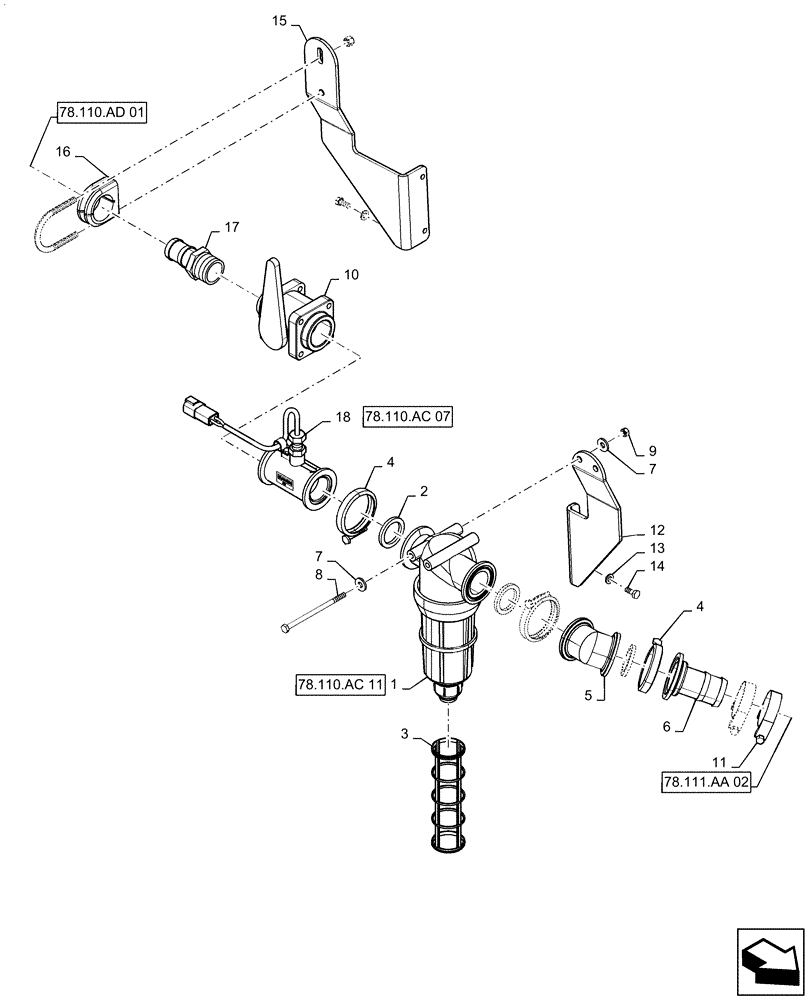

Запчасти Case IH PATRIOT 3240 (78.110.AC[05]) - LOW FLOW STRAINER AND THROTTLE VALVE (78) - SPRAYING

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

See 78.110.AC 11 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM, Serial Range: -YGT042518

3шт.

2

47888705

GASKET

2" Flange, EPDM, Start Serial: YGT042519

3шт.

3

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly, Serial Range: -YGT042518

1шт.

5

47767334

FITTING,2" Flange x 2" 45 Degree Hose Barb Elbow

45º, 2" Flange, Poly, Start Serial: YGT042519

1шт.

6

BN303198

FITTING,2" Flange x 2" Hose Barb, Poly

2" Flange x 2" Hose Barb

1шт.

7

BN300506

WASHER

8 mm

4шт.

8

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

10

BN322253

VALVE

1-1/2" Ball, Serial Range: -YGT042518

1шт.

See 78.110.AC [10.1] For ASN YGT042518

1шт.

11

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

12

87271470

BRACKET, SUPPORTING

Filter

2шт.

13

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

47371558

MOUNT

Throttle Valve

1шт.

16

343817A1

HOSE CLAMP

U Bolt

2шт.

17

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" MPT x 1-1/2" Hose Barb, Serial Range: -YGT042518

1шт.

See 78.110.AC [10.1] For ASN YGT042518

1шт.

18

87271267

MEASURING INSTRUMENT

Flow Meter, RFM 60

1шт.
