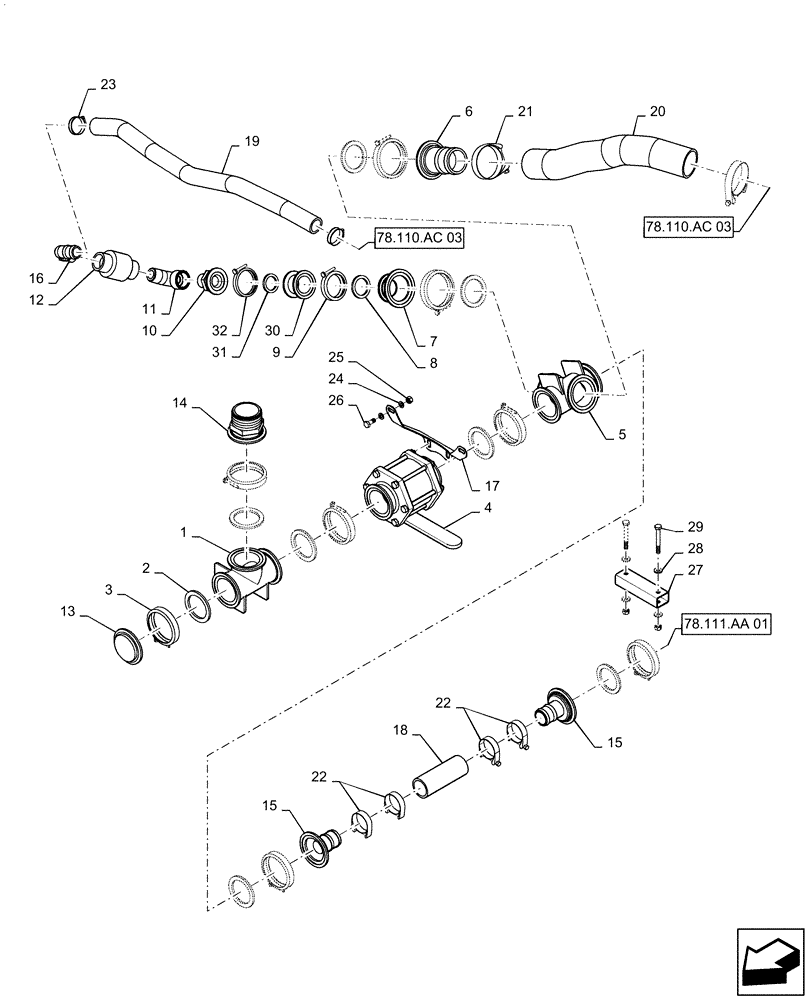

Запчасти Case IH PATRIOT 3240 (78.110.AC[05]) - 3" SUMP PLUMBING (78) - SPRAYING

1

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

Manifold, 3"

1шт.

2

BN321073

GASKET,3" Flange, EPDM

Manifold, 3"

8шт.

3

BN321074

CLAMP,101.6mm

Manifold, 3"

8шт.

4

BN321070

VALVE,3" Flange

Ball, 3" Flange

1шт.

5

BN321076

CROSS,3" Flange x 3" Flange x 3" Flange x 3" Flange, Poly

Manifold, 3"

1шт.

6

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Full Port Flange

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

Not Used If Eductor, Or Foam Marker Is Used

1шт.

9

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

10

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

Straight 2" Flange x 1 -1/4" MPT

1шт.

11

BN324890

ELBOW

90º, 1 -1/4" MPT x 1 -1/4" FPT

1шт.

12

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

13

BN321079

PLUG,3" Flange

Manifold, 3"

1шт.

14

BN321078

ADAPTER

Manifold, 3" x 3" MPT

1шт.

15

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" Flange x 2" Hose Barb

2шт.

16

87265957

FITTING,1-1/4"Male Thread x 1-1/2" 90 Degree Hose Barb

90º, 1 -1/4" MPT x 1 -1/2" HB

1шт.

17

84188916

SUPPORT

Valve

1шт.

18

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

19

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

20

BN326025

HOSE,3.00" ID BULK

EPDM

1шт.

21

BN2403395

CLAMP

T-Bolt Band, 3 -1/2"

2шт.

22

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band, 2 -1/2"

4шт.

23

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

24

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

25

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

26

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

27

84223386

SPACER

Pump

1шт.

28

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

30

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Full Port Flange x 2" Flange

1шт.

31

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

32

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.
