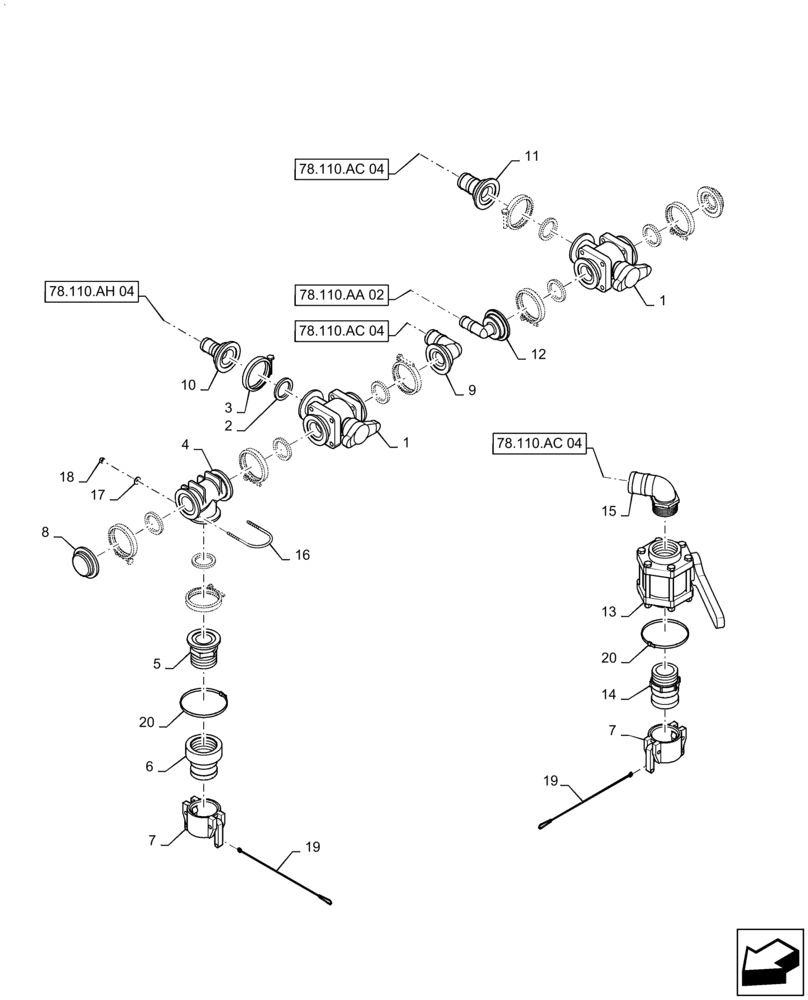

Запчасти Case IH PATRIOT 3240 (78.110.AC[02.2]) - 2" FILL STATION PLUMBING, SN YFT041440 AND AFTER (78) - SPRAYING

1

BN324998

VALVE

Ball, 2" Flange x 2" Flange

2шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

8шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

8шт.

4

BN303196

TEE,2" Flange x 2" Flange x 2" Flange, Poly

2" Flange Manifold

1шт.

5

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

6

BN304330

ADAPTER

2" Cam X 2" NPT

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

2шт.

8

BN304317

PLUG,2" Flange, Poly

2" Manifold

2шт.

Used If Chem Inductor, Or Foamer Is Not Used

1шт.

9

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 -1/2" Hose Barb

1шт.

10

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 -1/4" Hose Barb

1шт.

11

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Manifold x 1-1/2" Hose Barb

1шт.

12

BN322003

FITTING,2" Flange x 1" 90 Degree Hose Barb Elbow

2" Flange x 1" Hose Barb

1шт.

13

BN73761

VALVE,2" NPT x 2" NPT

Ball, 3" Flange

1шт.

14

BN2396382

COUPLING,2" Male Adapter-2" Male Thread

2" Cam, Male x 2" MPT

1шт.

15

BN73782

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MPT x 2" HB

1шт.

16

BN303201

U-BOLT

1/4" x 2 -3/8" x 3 -3/4"

1шт.

17

BN50138

WASHER,1/4", SS

2шт.

18

BN55359

LOCK NUT,1/4"-20, SS

#20, Stainless Steel

2шт.

19

416624A1

ROPE

Lanyard

2шт.

20

306132C1

CABLE TIE,14.5" L

2шт.
