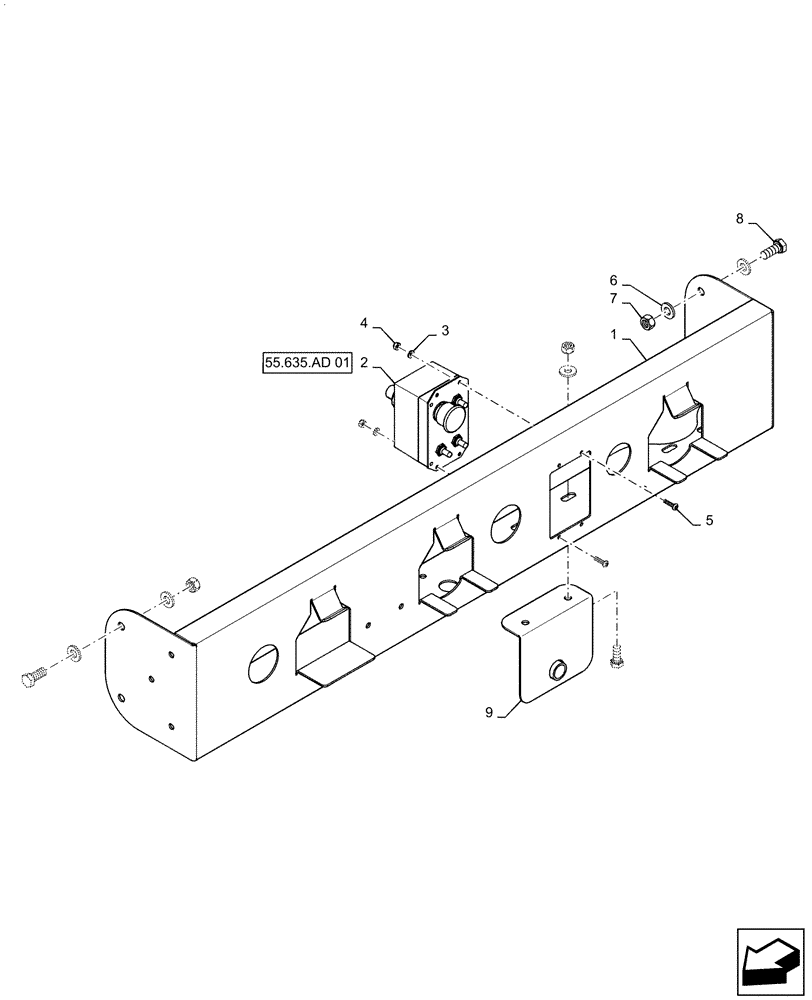

Запчасти Case IH PATRIOT 3240 (78.110.AC[01]) - FILL STATION (78) - SPRAYING

1

87271621

BASE PLATE

Fill Station

1шт.

2

87266536

CONTROL UNIT

Remote Station Reload Center, Complete, See 55.635.AD 01 For Service Parts

1шт.

3

BN310265

WASHER

10, SST

4шт.

4

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

5

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x 3/4", BSH, SST

4шт.

6

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

6шт.

9

84151749

MOUNT

Water Valve

1шт.
