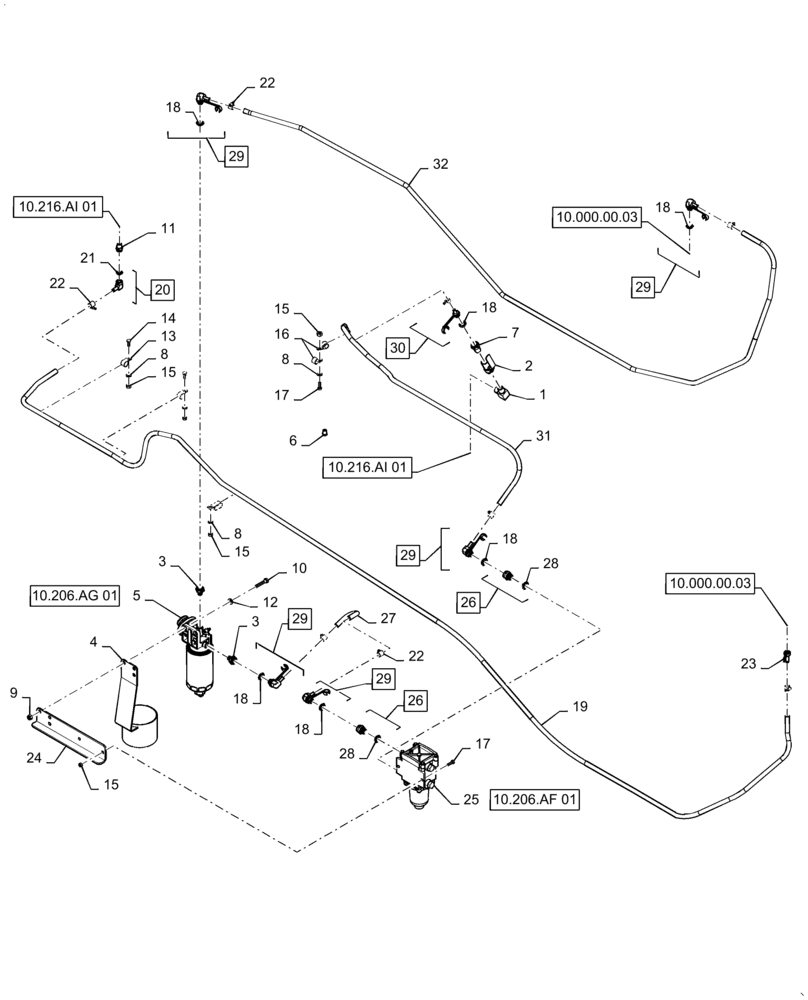

Запчасти Case IH PATRIOT 3240 (10.216.BA[01]) - FUEL LINE ASSY (10) - ENGINE

1

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

2

87265539

VALVE

Ball

1шт.

3

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

Hyd Connector

2шт.

4

87617087

GUARD

Fuel Filter

1шт.

5

84348875

FILTER ASSY

Complete

1шт.

See 10.206.AG 01 For Service Parts

1шт.

6

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

7

87270102

FITTING,1/2" NPTF to Quick Connect

Adapter, Brass

1шт.

8

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

10

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

3шт.

11

87270105

FITTING

Quick Connect Adapter, Brass

1шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

13

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

4шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

16

573070

SPARE PART

Clamp, Double

1шт.

17

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

87445405

O-RING

Incl In 29, 30

6шт.

19

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8" ID, Return to Tank, Bulk, Cut to Length Required

1шт.

20

87400460

90 ELBOW

Fitting, Incl 21

1шт.

21

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Incl In 20

2шт.

22

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

8шт.

23

87408919

FITTING

Straight

1шт.

24

47627921

MOUNT

Water Seperator

1шт.

25

336429A2

FUEL FILTER

Water Seperator, Complete

1шт.

See 10.206.AF 01 For Service Parts

1шт.

26

47682539

FITTING

NG 12 To Dash 8 ORB, Incl 28

2шт.

27

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8" ID, Fuel Seperator To Filter, Bulk, Cut To Length Required

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

29

8605735

90 ELBOW

90 Degree, 3/8" HB To NG12, Incl 18

5шт.

30

8605736

FITTING

3/8" HB To NG12, Incl 18

1шт.

31

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8" ID, Tank to Filter, Bulk, Cut To Length Required

1шт.

32

87267875

FUEL HOSE,9.53mm ID x 2076.45mm L, SAE 30R7

3/8" ID, Filter to Engine, Bulk, Cut To Length Required

1шт.
