(78.110.AA[04.2]) - SITE GAUGE, AND VENT, SN YFT041440 AND AFTER

Запчасти Case IH PATRIOT 3240 (78.110.AA[04.2]) - SITE GAUGE, AND VENT, SN YFT041440 AND AFTER (78) - SPRAYING

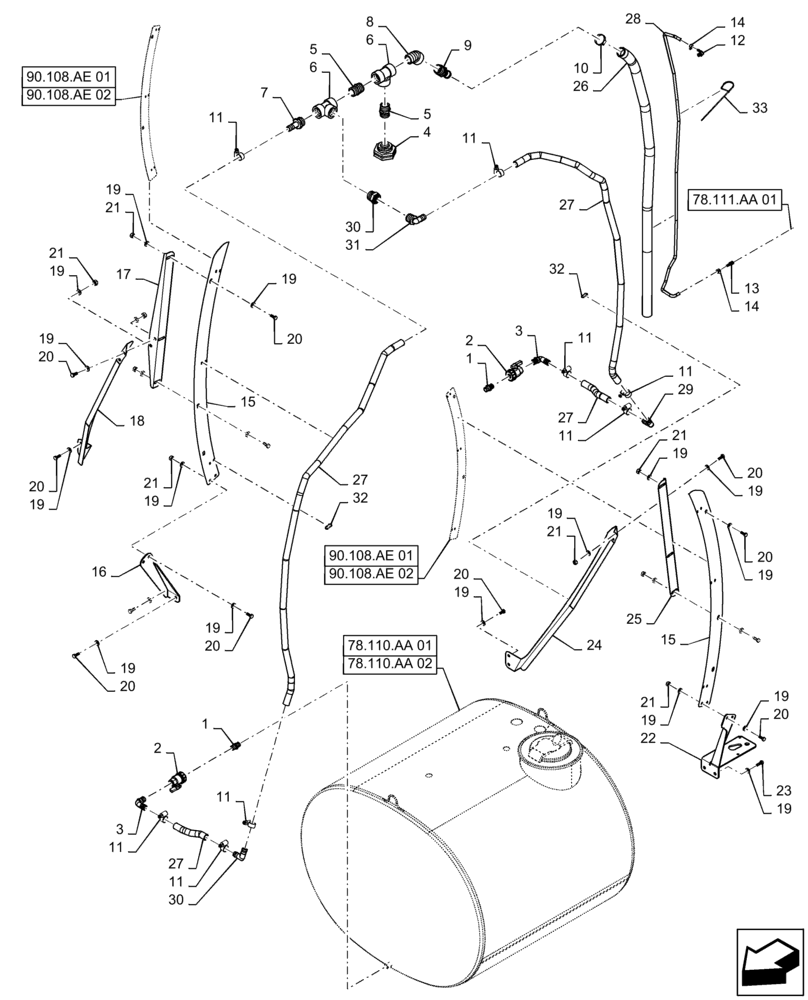

Схема запчастей Case IH PATRIOT 3240 - (78.110.AA[04.2]) - SITE GAUGE, AND VENT, SN YFT041440 AND AFTER (78) - SPRAYING
19
15
19
11
9
30
19
22
17
28
20
19
21
19
20
27
78.111.aa 01
19
26
20
13
11
19
19
78.110.aa 01
27
20
6
2
19
20
32
90.108.ae 01
21
19
33
3
2
1
20
24
20
78.110.aa 02
21
31
16
3
23
32
19
5
6
19
19
7
25
90.108.ae 01
14
21
90.108.ae 02
11
19
21
11
14
20
1
19
10
27
29
12
11
5
8
4
11
20
11
15
30
18
11
21
90.108.ae 02
27
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe

2шт.

2

BN324588

VALVE

Ball, 3/4"

2шт.

3

134271C2

ELBOW,ELBOW, 90

3/4" MPT x 1" HB

2шт.

4

BN73733

FITTING

Bulkhead, 1 -1/2"

1шт.

5

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 -1/2", Short

2шт.

6

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1 -1/2"

2шт.

7

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

Straight, 1 -1/2" MPT x 1" HB

1шт.

8

BN310467

ELBOW

45 Degree, 1 -1/2" MPT x 1 -1/2" FPT

1шт.

9

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

Straight, 1 -1/2" MPT x 1 -1/2" HB

1шт.

10

BN310448

HOSE CLAMP

#28, SST

1шт.

11

87487834

CLAMP,0.81" - 1.5"

#16, SST

8шт.

12

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" MPT x 1/4" HB

1шт.

13

BN72040

FITTING,1/8" MPT x 1/4" HB

Straight, 1 -1/4" MPT x 1/4" HB

1шт.

14

BN310450

HOSE CLAMP

#3, SST

2шт.

15

87580662

PLATE

Sight Gauge, Front

2шт.

See 90.108.AE 01 And 90.108.AE 02 For Decals

1шт.

16

87754420

MOUNT

Sight Gauge

1шт.

17

87754421

SUPPORT

Sight Gauge

1шт.

18

87754422

SUPPORT

Sight Gauge

1шт.

19

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

32шт.

20

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

17шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

22

84153770

MOUNT

Sight Gauge, Rear

1шт.

23

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

24

84153772

SUPPORT

Sight Gauge

1шт.

25

84153771

SUPPORT

Sight Gauge

1шт.

26

BN309785

HOSE

Bulk, 1 -1/2", Kanaflex, Cut To Length Required

1шт.

27

BN54256

HOSE

1" Clear Vinyl

1шт.

28

BN72041

HOSE

Bulk, 1/4" EPDM Discharge, Cut To Length Required

1шт.

29

342684A1

FITTING,1" 90 Degree Poly Hose Barb Elbow

Elbow, 1" HB x 1" HB

2шт.

30

BN73726

REDUCER FITTING,1-1/2" MPT x1-1/4" FPT Reducing Bushing

1 -1/2" MPT x 1 -1/4" MPT

1шт.

31

BN2296590

90 ELBOW

1-1/4" MPT x 1" HB

1шт.

32

22-824

CABLE TIE,3/16" x 7 1/4"

6шт.

33

BN570007

STRAP

Black, 14 -1/2", Long

3шт.
