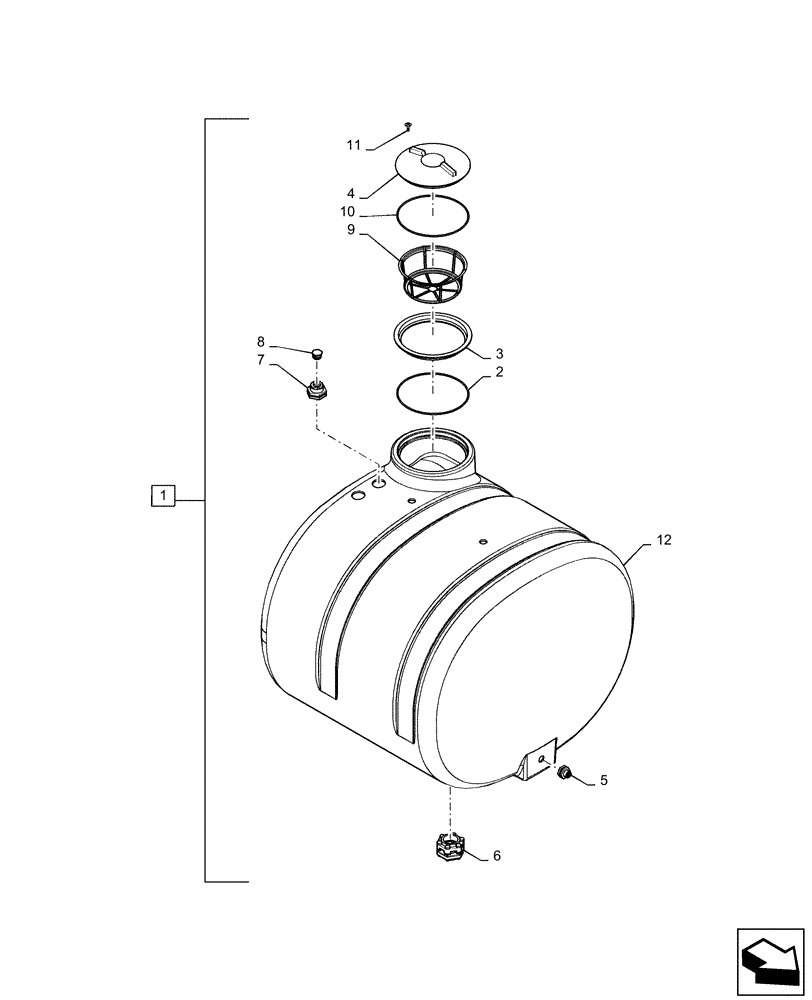

Запчасти Case IH PATRIOT 3240 (78.110.AA[03]) - TANK, 800 GAL, POLY (78) - SPRAYING

1

87470710

TANK

800 Gallon, Poly, Complete, Incl 2 Through 12

1шт.

2

87558657

SEAL,7.5mm Thk x 415mm ID

Lid

1шт.

3

87558658

RING

Lid

1шт.

4

21908

LID

16", No Vent

1шт.

5

BN311041

FITTING

Bulkhead, 3/4" FPT

2шт.

6

84142695

FLANGE,3" x 3" Threaded EPDM Flange

Fitting, Bottom Drain, 3" FPT

1шт.

7

BN73733

FITTING

Bulkhead,1 - 1/2"

1шт.

8

BN73731

PLUG,1-1/2" Male NPT, Poly

1 - 1/2" MPT

1шт.

9

87558640

STRAINER ELEMENT

Tank, 16" Basket

1шт.

10

84258218

GASKET

Lid To Collar

1шт.

11

21700

SCREW

# 10

8шт.

12

87734207

TANK

Less Fittings

1шт.
