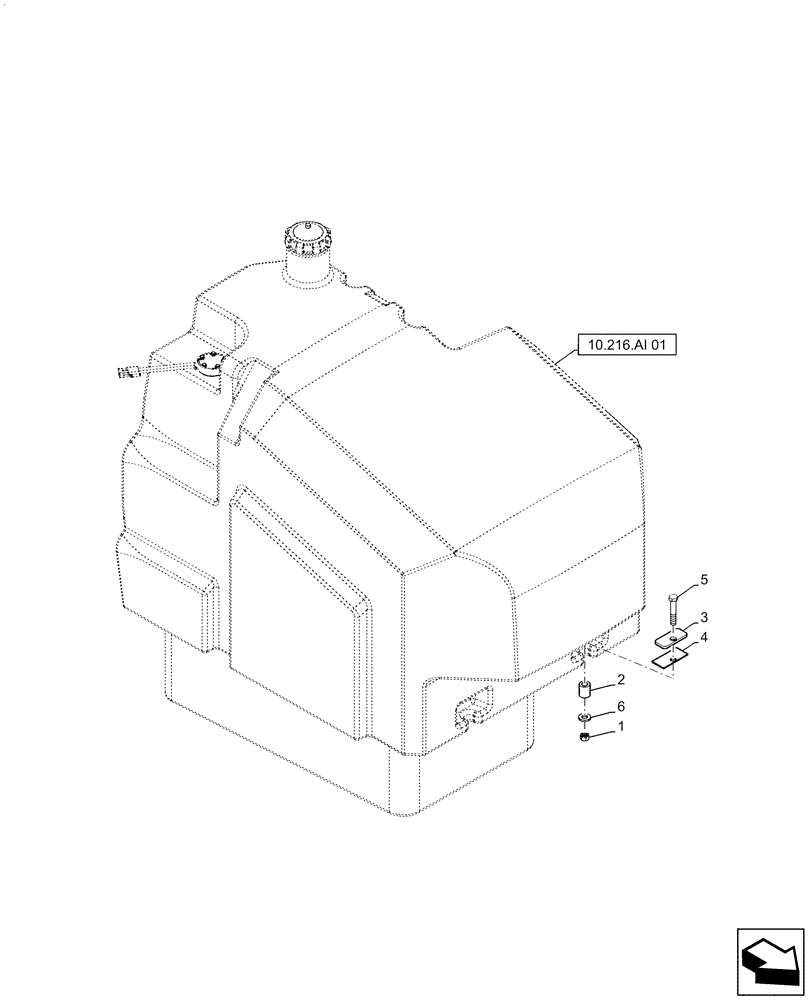

Запчасти Case IH PATRIOT 3240 (10.216.AI[02]) - FUEL TANK MOUNTING PARTS (10) - ENGINE

1

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

2

BN67653

BUSHING

Tank

4шт.

3

84237916

RUBBER MOUNTING

Adhesive Back

4шт.

4

BN67652

PLATE

Tank Hold Down

4шт.

5

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 X 28 X 4mm DOR

4шт.
