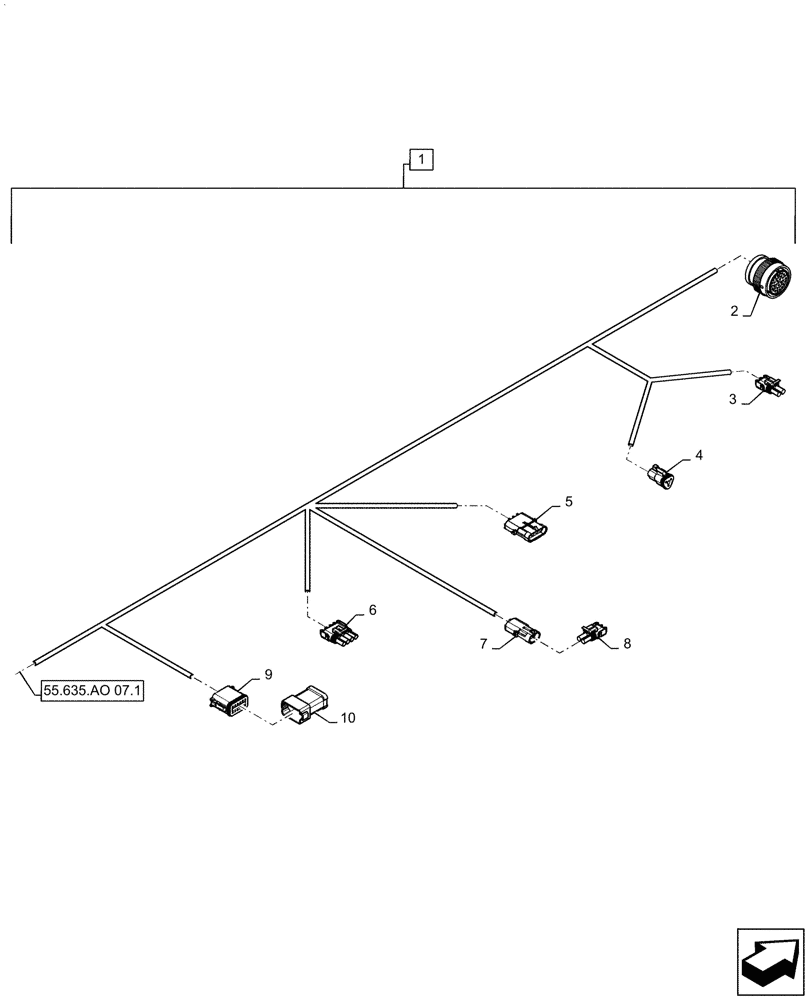

Запчасти Case IH PATRIOT 3240 (55.635.AO[06.1]) - PRODUCT CONTROL FRAME HARNESS, FRONT HALF, ASN YGT044000 (55) - ELECTRICAL SYSTEMS

1

48072704

WIRE HARNESS

Product Control, Frame, Complete, Incl 2 - 10

1шт.

2

87700817

ELEC CONNECTOR

Female, 35 Pin, Female, Bulkhead, Product To Cab, XB-5F

1шт.

2

84807680

PLUG

Red Cavity Plug, Bulkhead, Product To Cab, XB-5F

23шт.

2

84068583

PLUG,12 - 16 Ga, White

White Cavity Plug, Bulkhead, Product To Cab, XB-5F

2шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Bulkhead, Product To Cab, XB-5F

8шт.

2

87704042

TERMINAL

Female, Nickel, Bulkhead, Product To Cab, XB-5F

1шт.

2

225365C1

SOCKET

Female, Gold, Bulkhead, Product To Cab, XB-5F

1шт.

3

87692855

CONTACT HOUSING,Male, 2 Cavities

2 Way, Sparge Valve, X-518F

1шт.

3

87692882

ELEC. TERMINAL PIN

Male, Tin, Sparge Valve, X-518F

2шт.

4

87695549

ELEC CONNECTOR,Female, 3 Cavities

3 Way, Sparge PSI, X-519F

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Sparge PSI, X-519F

3шт.

4

84058193

LOCKING TAB,Wedge Lock

Wedge Lock, Sparge PSI, X-519F

1шт.

5

87692802

ELEC CONNECTOR

4 Way Male, To Boost Module Remote / AIM Out, X-520M

1шт.

5

87686742

PLUG

Green, To Boost Module Remote / AIM Out, X-520M

3шт.

5

87692880

CABLE TERMINAL

Male, Tin, To Boost Module Remote / AIM Out, X-520M

1шт.

5

84286327

SEAL

Wire, To Boost Module Remote / AIM Out, X-520M

1шт.

6

87692817

ELEC CONNECTOR

4 Way, Female, Remote / AIM, X-517F

1шт.

6

87686742

PLUG

Cavity, Remote / AIM, X-517F

2шт.

6

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

Remote / AIM, X-517F

2шт.

7

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Acc Power, X-503M

1шт.

7

87692882

ELEC. TERMINAL PIN

Male, Tin, Acc Power, X-503M

2шт.

8

87692855

CONTACT HOUSING,Male, 2 Cavities

Acc Power Cap, X-503F

1шт.

8

87686742

PLUG

Cavity, Green, Acc Power Cap, X-503F

2шт.

9

87710838

MULTIPOLE CONNECTOR

12 Way, Splice Pack, X-757F

1шт.

9

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Splice Pack, X-757F

6шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Splice Pack, X-757F

3шт.

9

87710914

STOP LOCK,12 Pin Plug

Wedge Lock, Splice Pack, X-757F

1шт.

9

84068583

PLUG,12 - 16 Ga, White

Cavity, Splice Pack, X-757F

6шт.

10

87269436

SOCKET/RECEPTACLE

12 Way, Buss Bar Cap, Splice Pack, X-757M

1шт.
